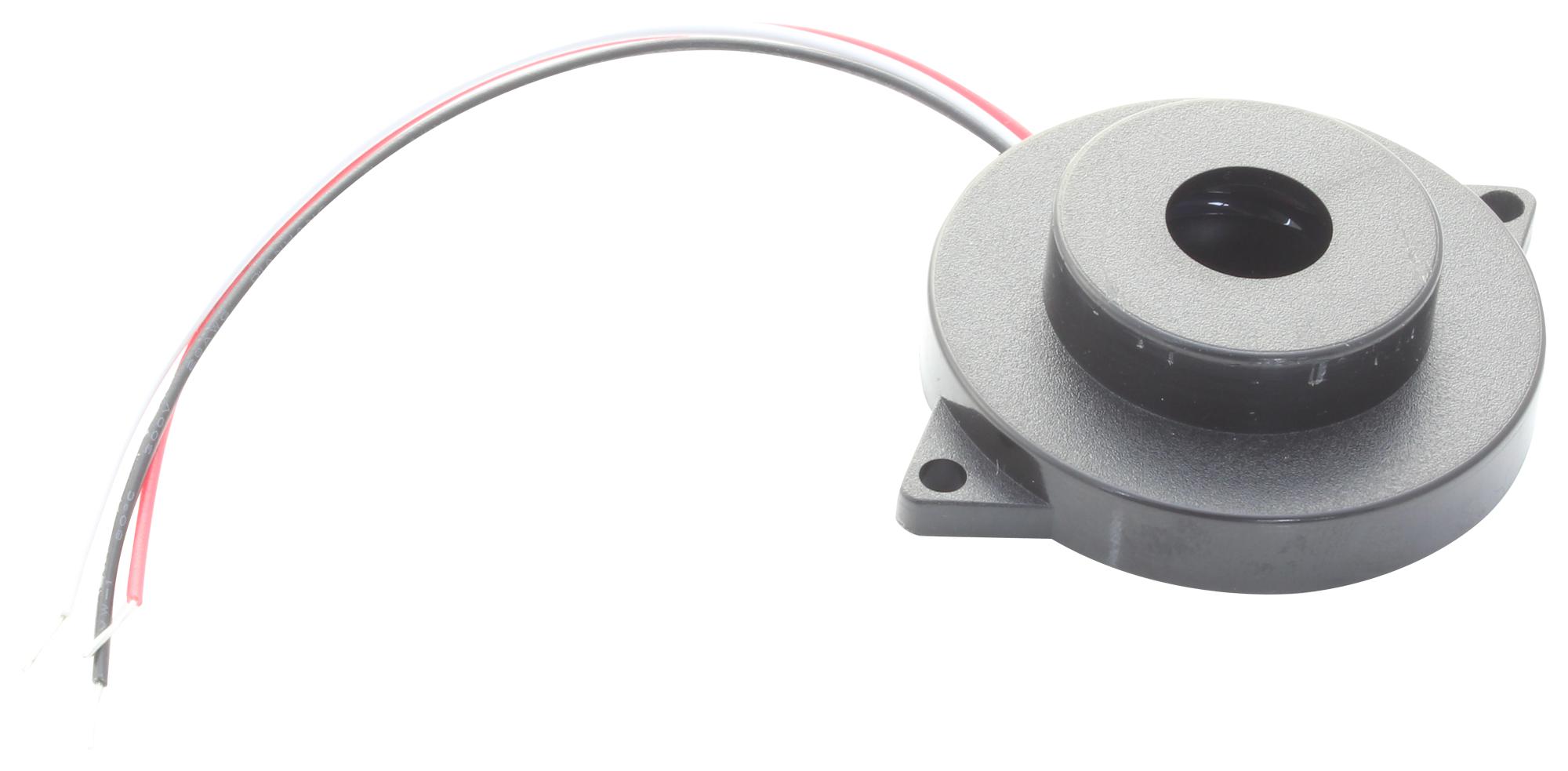

MULTICOMP PRO MP000293 Piezo Buzzer
This piezo buzzer features a feedback lead and delivers a loud 110dB sound at 2400Hz, ideal for security and alarm systems. With a 9V DC rated voltage and operating range of 6V to 12V DC, it offers a resonant frequency of 3200Hz ±300Hz. Constructed with durable ABS777D black housing, it weighs only 15 grams. It is suitable for panel alarms, access control, and security applications, providing a dependable loud alert. The buzzer operates effectively within -20°C to +70°C temperature range and complies with RoHS regulations, ensuring safety and environmental standards. No wave soldering or washing is recommended.
MULTICOMP PRO MP000293 Piezo Buzzer Specifications:
- Rated Voltage: 9VDC
- Operating Voltage: 6V DC to 12V DC
- Rated Current at Rated Voltage: 30mA
- Sound Output at 2400Hz at 10cm: 110dB
- Resonant Frequency: 3200Hz ±300Hz
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -20°C to +85°C
- Weight: 15g
- Tone: Single
- Housing Material: ABS777D (black)
- Piezo Element Material: Brass
- Wire Gauge: UL1095 AWG28
- Lead Wires: Red, White & Black
- Dimensions: Not specified but typical size approx. 40mm diameter
- Wave Solder & Wash Not Allowed
- Compliance: RoHS
Buy the Buy Multicomp Pro Piezo Buzzer Part Number MP000293 Online
Purchase the high-quality Multicomp Pro Piezo Buzzer MP000293 online now. This robust, loud buzzer produces 110dB at 2400Hz, making it perfect for alarms, security, access control, and alert systems. With an operating voltage of 6V to 12V DC, it features a durable black ABS777D housing, a resonance frequency of 3200Hz ±300Hz, and complies with RoHS regulations. Its lightweight design (15g) and wide temperature range from -20°C to +70°C ensure versatile and reliable performance in various environments. Ideal for panel alarms and security applications.
Order your Multicomp Pro Piezo Buzzer Part MP000293 today and ensure your security systems are loud, reliable, and compliant with RoHS standards.
