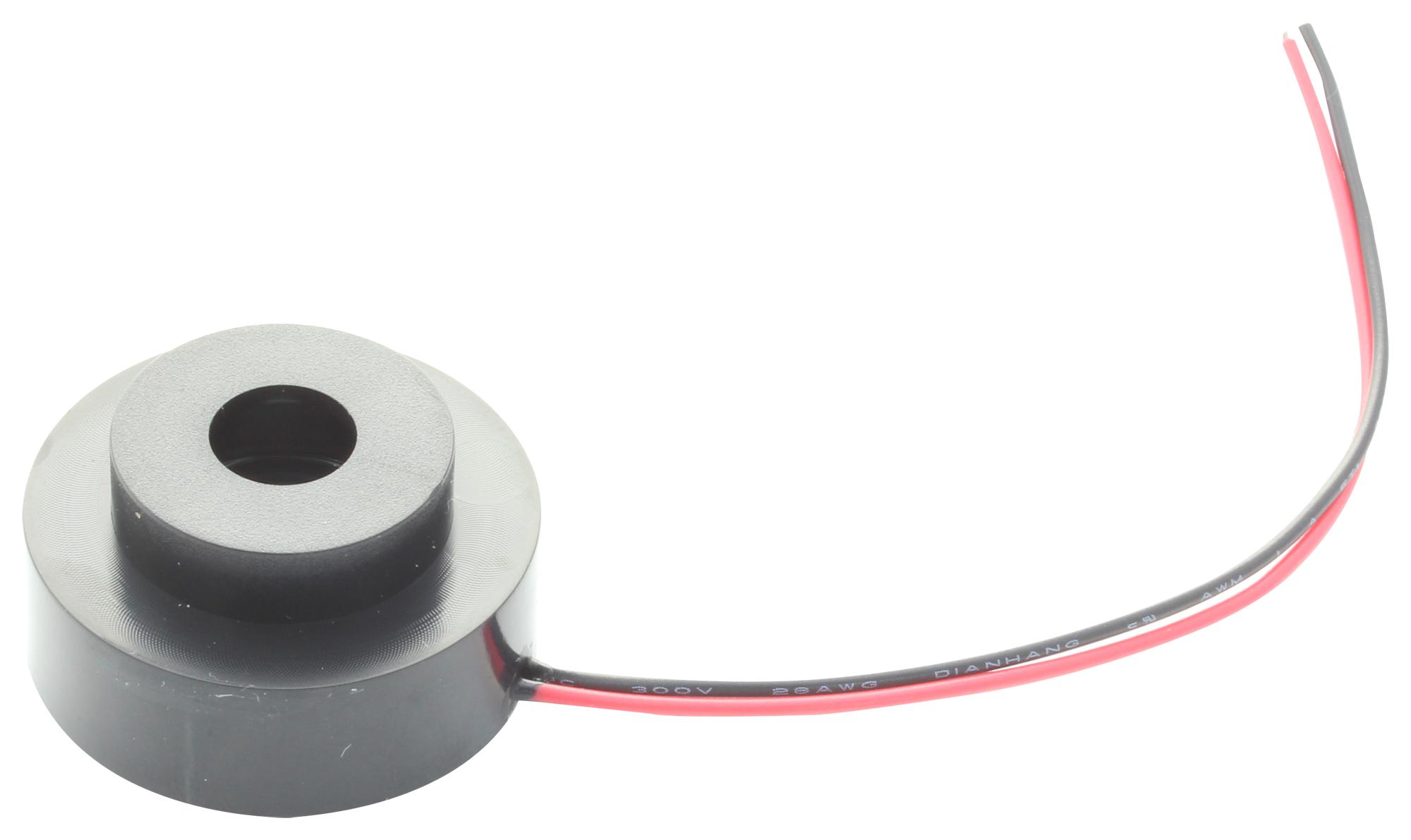

MULTICOMP PRO MP000296 Piezo Buzzer
This 12V piezo buzzer features a compact 30mm diameter design with a loud output of 110dB at 2400Hz, making it ideal for warning and alert applications. It operates efficiently within a voltage range of 6V to 16V, with a rated current of 30mA. Crafted with stainless steel piezo elements housed in black ABS, it is suitable for industrial and automation use, offering RoHS compliance and durability across temperatures from -40°C to +85°C. Its lightweight, single-tone design ensures reliable performance in compact electronic systems.
MULTICOMP PRO MP000296 Piezo Buzzer Specifications:
- Rated Voltage: 12V DC
- Operating Voltage: 6V DC to 16V DC
- Rated Current at Rated Voltage: 30mA
- Sound output at 2400Hz at 10cm: 110dB
- Resonant Frequency: 3250Hz + 500Hz
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Weight: 6.6g
- Tone: Single
- Material: Stainless Steel (Piezo Element), ABS (Housing)
- Dimensions: Diameter 30mm, Tolerance +0.2mm
- Lead Wire: Red & Black, 100mm length
- Wave solder and wash not allowed
- RoHS Compliant
Buy the multicomp Series Piezo Buzzer: MP000296
Order the multicomp MP000296 piezo buzzer online today and enjoy a high-volume alert solution perfect for industrial, automation, and electronic alarm applications. Featuring a 12V power rating, 110dB sound output, and a durable 30mm diameter design, this compact device operates effectively across a temperature range of -40°C to +85°C. Easy to integrate with a simple single-tone operation, it delivers reliable performance for alarms, warnings, and notification systems in various industrial environments. Purchase now for proven durability and consistent sound performance.
Buy multicomp MP000296 now and experience unmatched reliability and performance in compact alert systems.
