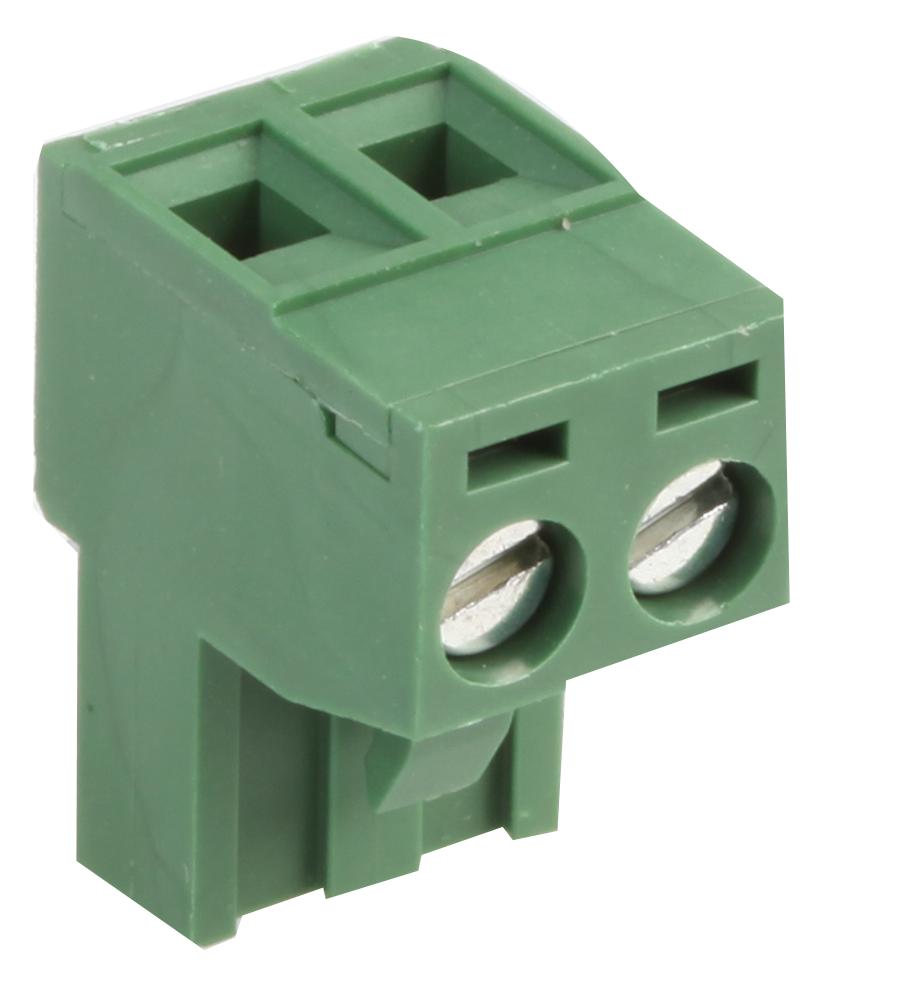

MULTICOMP PRO MC000176 Pluggable Terminal Blocks
The pluggable terminal blocks are designed for reliable electrical connections in industrial and automation applications. Rated at 16 Amperes and 300V AC, these connectors feature a 5.08 mm pitch and accommodate wire ranges from 22 AWG to 12 AWG with wire strip lengths of 4 to 5 mm. Made from polyamide 66 insulating bodies, phosphor bronze contacts with tin plating, and zinc-plated steel screws, they withstand temperatures from -40°C to +105°C and maintain high insulation resistance. Suitable for mounting on circuit boards with various pole options, these terminal blocks ensure secure, easy-to-install connections in electrical systems.
MULTICOMP PRO MC000176 Pluggable Terminal Blocks Specifications:
- Current Rating: 16 Amperes, 300V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: > 2,000 MQ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Strip Length: 4mm to 5mm
- Wire Range: 22 AWG to 12 AWG
- Screw Torque: 7 Ib-inch
- Pitch: 5.08 mm (0.2 inch)
- Material: Insulating body polyamide 66, contact phosphor bronze, zinc-plated steel screw
- Pole options: 2, 3, 4, 5, 6, 8, 10, 12 ways
- Dimensions vary with pole number, overall length up to 60.96 mm
Buy the Multicomp MC000176 – Reliable Pluggable Terminal Blocks for Industrial Applications
Purchase Multicomp pluggable terminal blocks online today and enjoy reliable, high-quality connections rated for 16A and 300V AC. These modules feature a 5.08mm pitch, accommodate wire ranges from 22 to 12 AWG, and are ideal for industrial automation, control panels, and wiring systems. Easy to install with wire strip length of 4 to 5mm and high insulation resistance, they ensure safe and secure electrical connections. Perfect for various pole configurations including 2, 3, 4, 5, 6, 8, 10, and 12 ways, supporting efficient wiring solutions for your projects.
Get Multicomp MC000176 today—designed for secure, easy-to-install electrical connections in industrial systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000176?
You can click on the BUY or RFQ button to purchase MC000176 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000176?
You can download the MC000176 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000176?
MULTICOMP PRO
