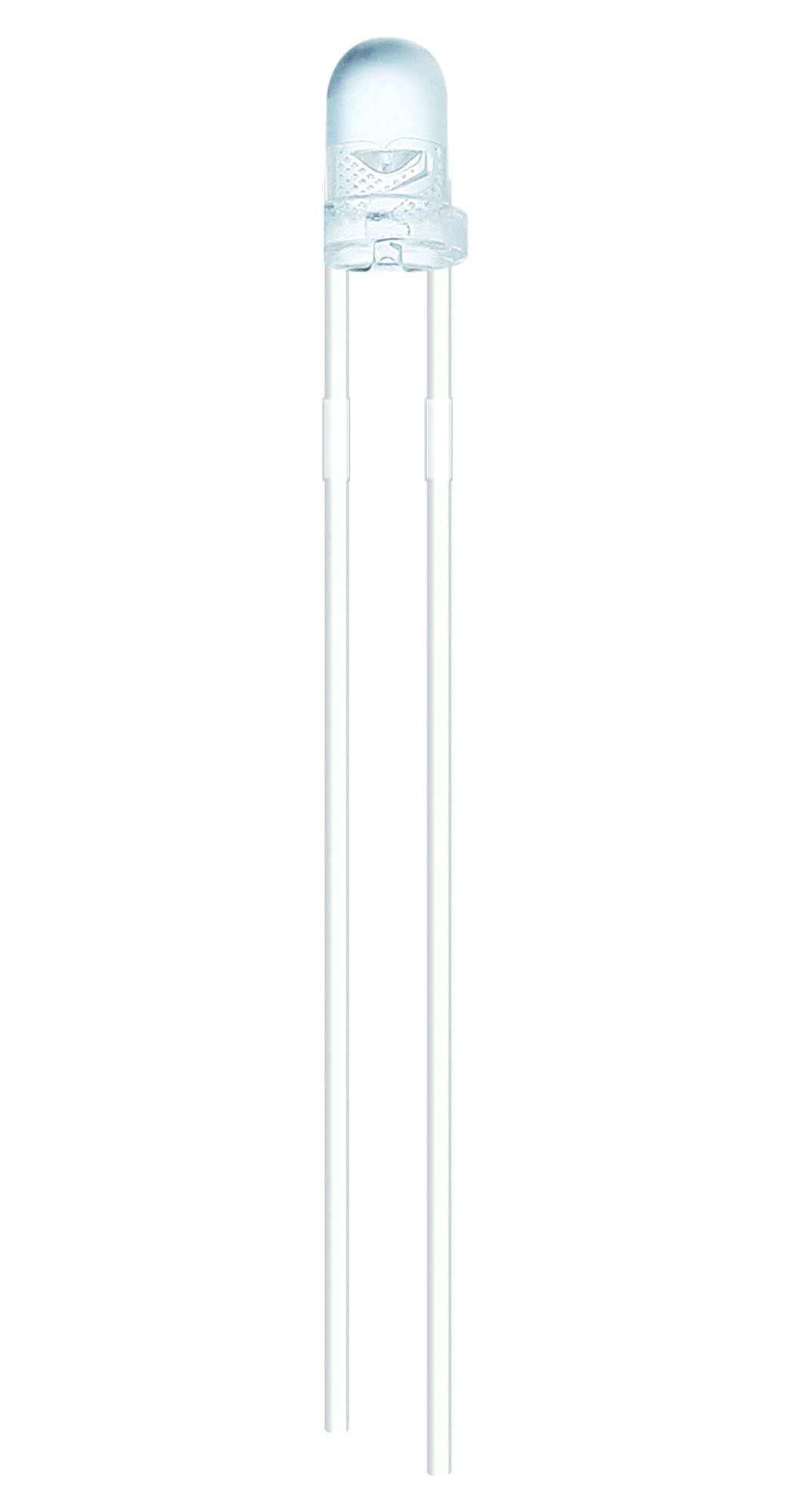

MULTICOMP PRO MP000436 Super Blue LED
This high-demand Super Blue LED lamp has a 3mm diameter with a water-clear lens, made from InGaN die material, emitting at 470nm wavelength. It features a viewing angle of 30 degrees, luminous intensity of up to 4000mcd, and operates at a forward voltage of approximately 3.1 to 3.5 volts with a typical current of 20mA. Designed for reliable performance, it suits various electronic applications requiring bright blue illumination, and complies with RoHS standards, making it ideal for industrial and consumer devices requiring durable and efficient LED lighting solutions.
MULTICOMP PRO MP000436 Super Blue LED Specifications:
- Diameter: 3mm (T-1)
- Lens Colour: Water Clear
- Dice Material: InGaN
- Peak Wavelength: 470nm
- Viewing Angle: 30 Degrees
- Luminous Intensity: 2000mcd (typical 4000mcd max)
- Forward Voltage: 3.1V to 3.5V at 20mA
- Power Dissipation: 85mW
- Recommended Operating Current: 20mA
- Peak Forward Current: 100mA (duty 1/10 at tke)
- Reverse Voltage: 5V
- Reverse Current: 10μA
- Electrostatic Discharge (ESD): 200V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature Range: 260°C for 5 seconds
Buy the Multicomp Series Super Blue LED: MP000436
Enhance your electronic projects with this high-quality 3mm super blue LED, featuring a 470nm wavelength, 30-degree viewing angle, and 2000mcd intensity. Its InGaN die material ensures brightness and durability, making it perfect for indicator lights, displays, and custom illumination solutions. RoHS compliant, with a maximum forward voltage of 3.5V and operating current of 20mA, it guarantees efficient, long-lasting performance in various industrial and consumer applications. Order online today for fast, reliable delivery.
Buy Multicomp Series MP000436 super blue LED now and experience unmatched reliability and performance for your electronic lighting needs.
