MULTICOMP PRO MP000449 Round LED Lamp

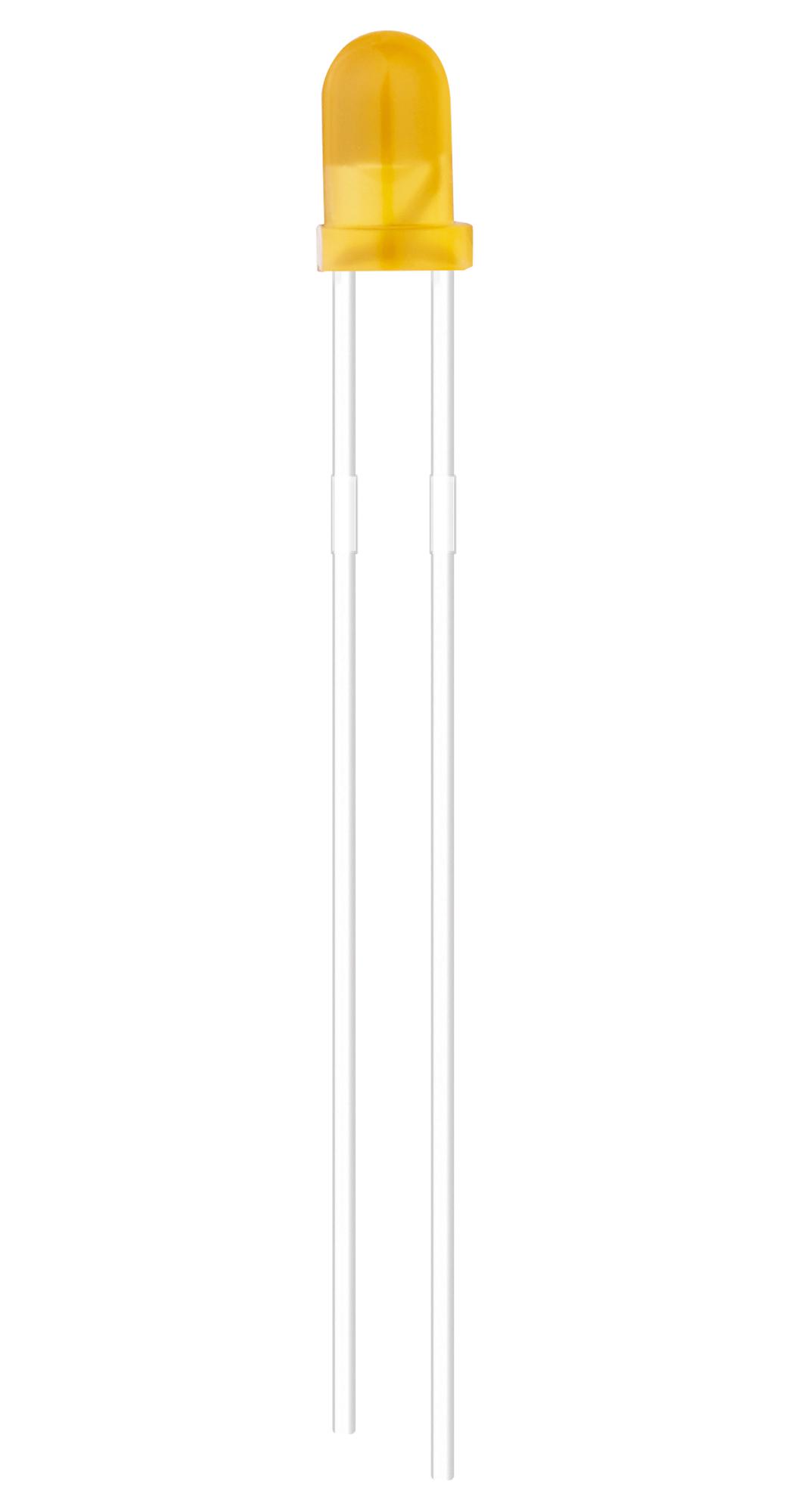

The 3mm round LED lamp in orange red features a GaAsP on GaP die material, emitting at a peak wavelength of 635nm with a 50-degree viewing angle. It operates at 20mA, with a forward voltage of 2V typical and a luminous intensity of 40mcd. Suitable for various display applications, it has a maximum power dissipation of 85mW and withstands temperatures from -40°C to +85°C. RoHS compliant, the LED includes an orange diffused lens, ensuring high brightness and reliability in different environments.
MULTICOMP PRO MP000449 Round LED Lamp Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Orange Red
- Lens Colour: Orange Diffused
- Peak Wavelength: 635nm
- Viewing Angle: 50 Deg.
- Luminous Intensity: 40mcd
- Forward Voltage: 2V (typical), 1.8V min, 2.6V max
- Power Dissipation: 85mW
- Peak Forward Current: 100mA (duty 1/10 @ fkHz)
- Recommended Operating Current: 20mA
- Reverse Voltage: 5V
- Reverse Current: 10μA at VR=5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds
- Wavelength: 635nm at peak emission
- Spectral Line Half-Width: 45nm
- Soldering Conditions: Tip temperature max 350°C, duration 3 sec +1 sec
Buy the Buy multicomp Round LED Lamp Part Number MP000449 Online
Purchase the multicomp MP000449 round LED lamp online now to ensure prompt delivery and reliable performance. Ideal for indicator and display applications, this 3mm orange red LED features a peak wavelength of 635nm, a 50° viewing angle, and a luminous intensity of 40mcd. RoHS compliant, it operates at 20mA with a forward voltage of 2V, offering excellent brightness and efficiency. Easy to solder with specified temperature conditions, this LED provides durability in different environments, making it a perfect choice for technical and industrial projects.
Order your multicomp MP000449 orange red LED lamp today and enhance your display projects with reliable, high-brightness illumination.
