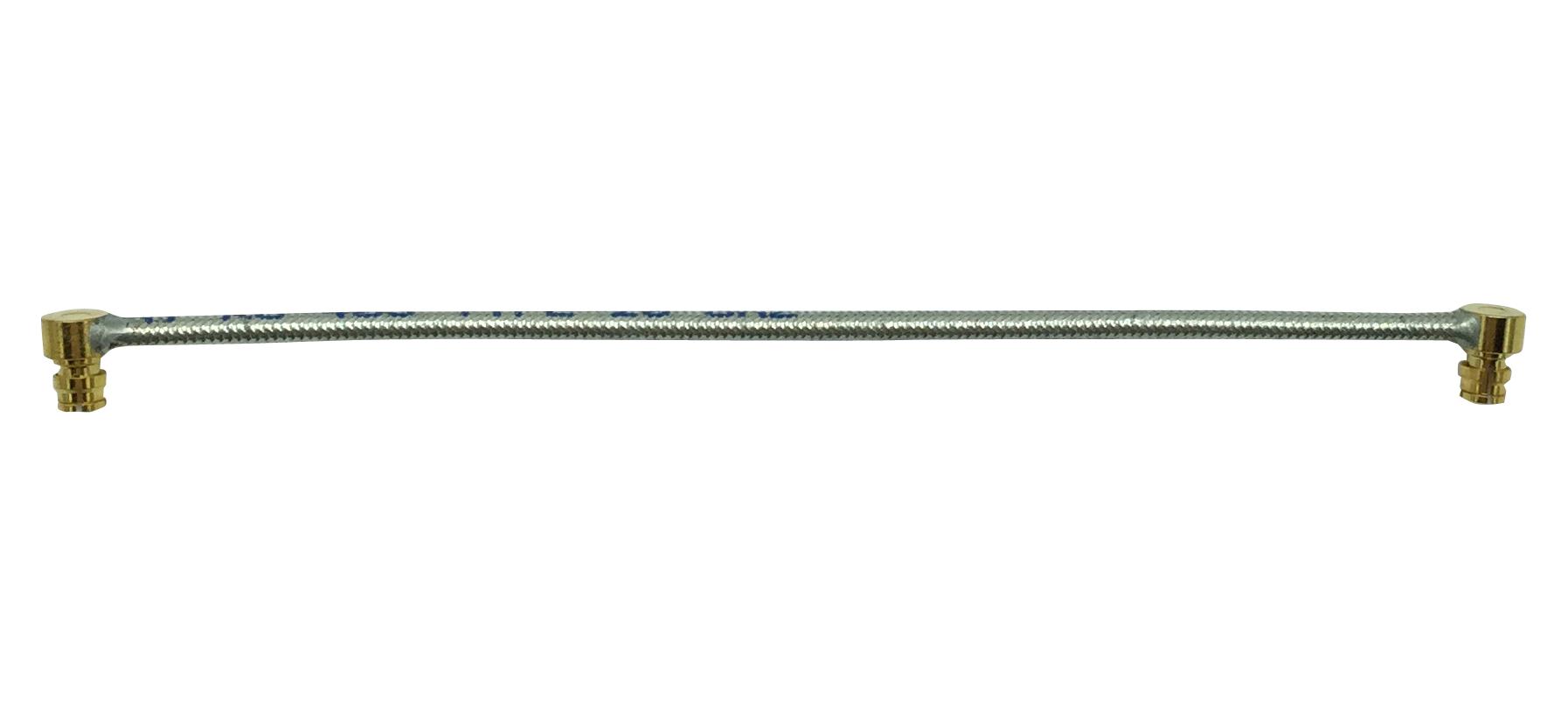

MULTICOMP PRO MC002994 RF Cable Assembly
This RF cable assembly features a right-angle SMP connector on both ends with an RG-405 cable type, 100mm in length. Designed for high-frequency applications up to 13.5GHz, it offers a VSWR of 1.5 and excellent return loss. The assembly provides a voltage rating of 335V RMS and withstands dielectric and insulation resistance requirements. Made of beryllium copper with gold plating and PTFE insulation, it ensures durability with up to 500 mating cycles. Suitable for precise RF testing and communication systems, this compact assembly offers reliable performance and RoHS compliance.
MULTICOMP PRO MC002994 RF Cable Assembly Specifications:
- Cable Length: 100mm / 3.94 inches
- Connector Type: SMP Right Angle Jack
- Cable Type: RG-405
- Impedance: 50 Ohms
- Frequency: 0 - 13.5GHz
- VSWR: 1.5 at 13.5GHz
- Return Loss: 13.979dB at 13.5GHz
- Voltage Rating: 335V RMS
- Insulation Resistance: ≥1000MQ Min.
- Dielectric Withstanding Voltage: 335V AC for 1 min.
- Centre Contact Resistance: 2mΩ Max.
- Outer Contact Resistance: 6mΩ Max.
- Mating Cycles: 500
- Body Material: Beryllium Copper, Gold Plated
- Centre Contact Material: Beryllium Copper, Gold Plated
- Insulating Material: PTFE
- Durability: 500 mating cycles
- RoHS: Compliant
Buy the Multicomp Series SMP Right Angle RF Cable Assembly: MC002994
Purchase the Multicomp Series SMP Right Angle RF Cable Assembly online today and benefit from its high-frequency performance, durable construction, and compact design. With a length of 100mm, it features RG-405 cable, gold-plated Beryllium Copper connectors, and is rated up to 13.5GHz. Perfect for precision RF applications, it offers exceptional VSWR, return loss, lightning-fast mating cycles, and RoHS compliance. Improve your communication systems with this reliable, high-quality RF assembly available for quick online ordering now.
Order your Multicomp Series SMP Right Angle RF Cable Assembly today and ensure reliable high-frequency connectivity for your RF projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002994?
You can click on the BUY or RFQ button to purchase MC002994 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002994?
You can download the MC002994 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002994?
MULTICOMP PRO
