MULTICOMP-PRO MP000684 Metal Film Resistors
Precision metal film resistors designed for high stability and reliability in automotive, telecommunication, medical, and testing equipment. Featuring RoHS compliance, AEC-Q200 certification, Sn termination on Ni barrier layer, these resistors offer excellent stability and high power ratings up to 0.3W. Resistance ranges from 8.2 ohms to 1 MΩ with tolerance as tight as +0.1% and temperature coefficients of +15ppm/°C to +50ppm/°C. They operate across temperatures from -55°C to +155°C and meet environmental testing standards for durability and performance.
MULTICOMP-PRO MP000684 Metal Film Resistors Specifications:
- Resistance Range: 8.2 ohm to 1 MΩ
- Resistance Tolerance: ±1%, ±0.1%, ±45%
- Temperature Coefficient: +15ppm/°C to +50ppm/°C
- Power Rating P70: 1/8W, 1/5W, 0.3W
- Operating Voltage Umax.: 150V, 200V
- Operating Temperature Range: -55°C to +155°C
- Max Resistance Change at P70: 0.5%
- Construction includes ceramic rod, resistor layer, and Sn/Ni termination
- Dimensions: L 22±0.1mm, D 1.1mm, D1 1.1mm, case style 0102
- Environmental: RoHS compliant, AEC-Q200 certified
- Shock, vibration, moisture, and solderability tested for durability
- Soldering: Peak 260°C, 3 reflow cycles, wave soldering compatible

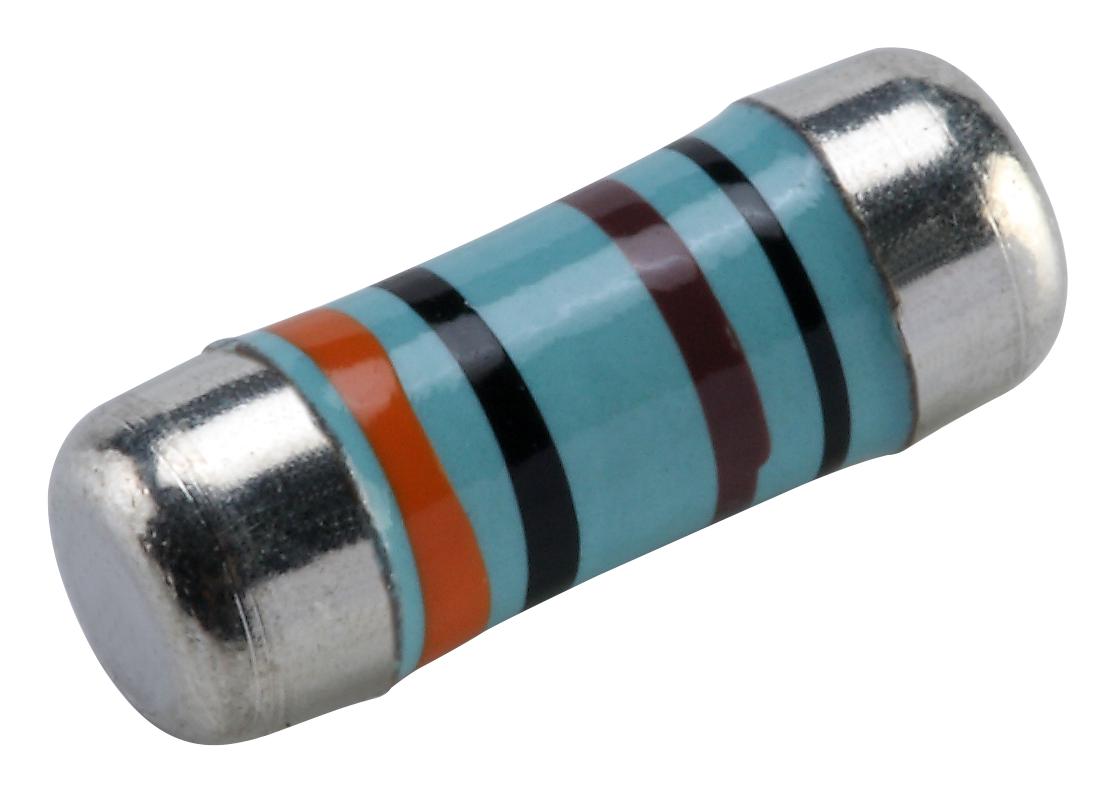

Buy the Buy multicomp Metal Film Precision MELF Resistors Part Number MP000684 Online
Purchase multicomp Metal Film Resistors online today for high stability, excellent environmental durability, and precise resistance values ideal for automotive, telecommunication, and industrial testing equipment. These resistors feature RoHS compliance and are certified to meet AEC-Q200 standards, ensuring they operate efficiently across a wide temperature range from -55°C to +155°C. With power ratings up to 0.3W and resistance tolerances as tight as 0.1%, they are perfect for critical applications requiring consistent performance and long-term reliability. Order now for fast delivery and seamless integration into your projects.
Buy multicomp Metal Film Precision MELF Resistors MP000684 now and experience unmatched reliability and performance in demanding applications.
