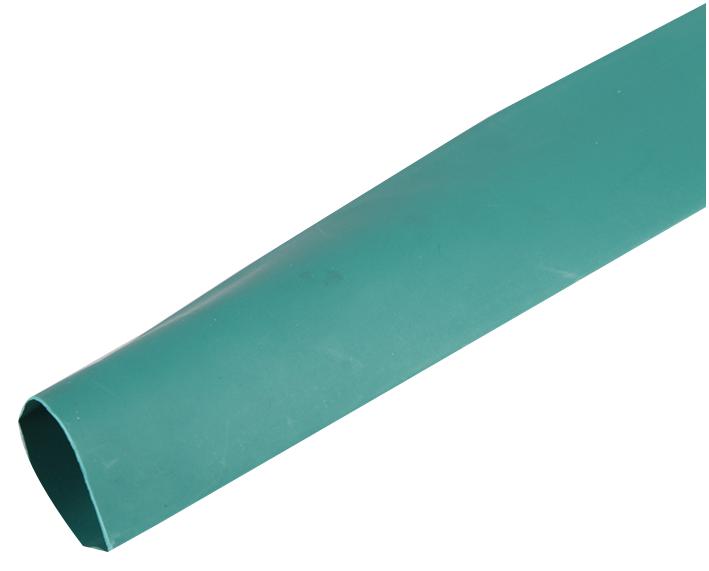

MULTICOMP PRO 15162 Polyolefin Heat Shrink Tubing
The MULTICOMP PRO 15162 heat shrink tubing is manufactured with modified radiation cross-linked polyolefin and features a specially designed halogen-free formulation. This tubing provides excellent flexibility and shrinks at lower temperatures, making it ideal for applications requiring temperature-sensitive component protection and quick shrinkage. It exhibits good mechanical and electrical performance, making it suitable for a wide range of industrial applications including wire and cable insulation, bundling, and protection.
MULTICOMP PRO 15162 Polyolefin Heat Shrink Tubing Specifications:
- Halogen Free: Yes
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Available Colours: Green/Yellow, White, Green, Yellow, Blue, Red, Black, Grey
- Tensile Strength: ≥10.4 Mpa
- Ultimate Elongation: ≥200%
- Longitudinal Shrinkage: +/-5%
- Heat Aging Tensile Strength: ≥7.3 Mpa
- Heat Aging Ultimate Elongation: ≥100%
- Heat Shock: No cracking, No dripping
- Flammability: Pass (FMVSS302)
- Dielectric Strength: ≥15 kV/mm
- Volume Resistivity: ≥1 × 1014Ω cm
- Copper Stability: Pass (UL224)
- Copper Corrosion: No corrosion
- Size (mm): 1.2
- Internal Diameter (As Supplied): 1.1±0.2
- Wall Thickness (As Supplied): 0.18±0.05
- Internal Diameter (After Recovery): 0.50
- Wall Thickness (After Recovery): 0.33+/-0.10
