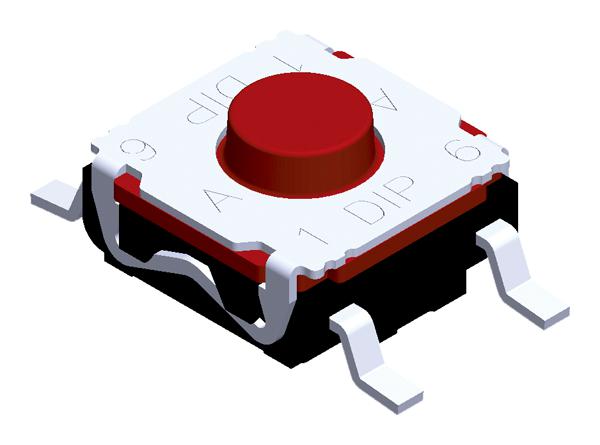

MULTICOMP-PRO MP000708 Surface Mount Tactile Switch
Surface mount tactile switches designed for various electronic applications including automotive, cellular phones, industrial equipment, network infrastructure, and elevators. These RoHS-compliant switches feature long travel, high cycle durability, IP67 water and dust resistance, and halogen-free materials. Operating at 20mV to 32V DC with contact resistance below 100mΩ, they support up to 5 million cycles depending on force. Operating temperatures range from -40°C to +85°C, ensuring reliable performance in demanding environments. Precise dimensions and force variants cater to diverse design needs, making them ideal for compact, durable electronics.
MULTICOMP-PRO MP000708 Surface Mount Tactile Switch Specifications:
- Contact Rating: 20mV DC to 32V DC / 1mA to 50mA
- Contact Resistance: < 100mΩ
- Insulation Resistance: > 10MQ min. 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 160+50gf (Brown), 200-250gf (Rad), 350-2100gf (Salmon)
- Travel: 0.3mm (160gf), 0.35mm (200gf), 0.5mm (350gf)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C (short-term tests)
- Life Cycle: up to 5,000,000 cycles depending on force
- Protection: IP67 water and dust proof
- Material: Halogen-free, RoHS compliant
- Mounting Style: Surface Mount
- Applications: Automotive, cellular, industrial, network infrastructure, elevators
- Dimensions: Varying lengths but measurements include approx. 29mm or 27mm length, 3.5mm or 5.2mm height.
Buy the Buy multicomp Surface Mount Tactile Switches Part Number MP000708 Online
Discover the ease of purchasing high-quality surface mount tactile switches online. The MP000708 model offers durable, IP67-rated protection, suitable for automotive, industrial, and electronic applications. With a long operating life and low contact resistance, these switches ensure dependable performance. Ideal for designers seeking compact and reliable components, they support operation across a wide temperature range from -40°C to +85°C and facilitate simplified assembly with surface mounting. Buy now to enhance your electronic project with top-tier switches that meet demanding specifications and industry standards.
Buy multicomp MP000708 now and ensure reliable performance for your automotive or industrial electronics with long travel tactile switches.
