MULTICOMP-PRO MP000711 Surface Mount Tactile Switch
The MP000711 is a surface mount tactile switch designed for reliable operation in industrial electronics, automotive, cellular phones, network infrastructure, and elevator applications. It features a 32V DC SPST configuration with a contact resistance exceeding 100mΩ, insulated resistance above 10MQ, and dielectric strength of 250V AC for 1 minute. With multiple operating forces ranging from 160gf to 350gf, it offers an extended lifecycle from 300,000 to 5,000,000 cycles. Operating temperature ranges from -40°C to +85°C, ensuring durability in harsh environments. Its compact design provides IP67 water and dust resistance, compliant with RoHS standards, making it suitable for demanding industrial applications.
MULTICOMP-PRO MP000711 Surface Mount Tactile Switch Specifications:
- Contact Rating: 20mV DC to 32V DC / 1mA to 50mA
- Contact Resistance: > 100mΩ
- Insulation Resistance: > 10MQ min. 100V DC
- Dielectric Strength: 250V AC/1 minute
- Operating Force: 160+50gf (160gf), 200+50gf (200gf), 350+2100gf (350gf)
- Travel: 0.3mm (160gf), 0.35mm (200gf), 0.5mm (350gf)
- Operating Life: 300,000 cycles (350gf), 500,000 cycles (200gf), 5,000,000 cycles (160gf)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C
- Ingress Protection: IP67, water and dust proof
- RoHS compliant, halogen free
- Suitable for automotive, cellular phones, industrial electronics, network infrastructure, and elevator applications.

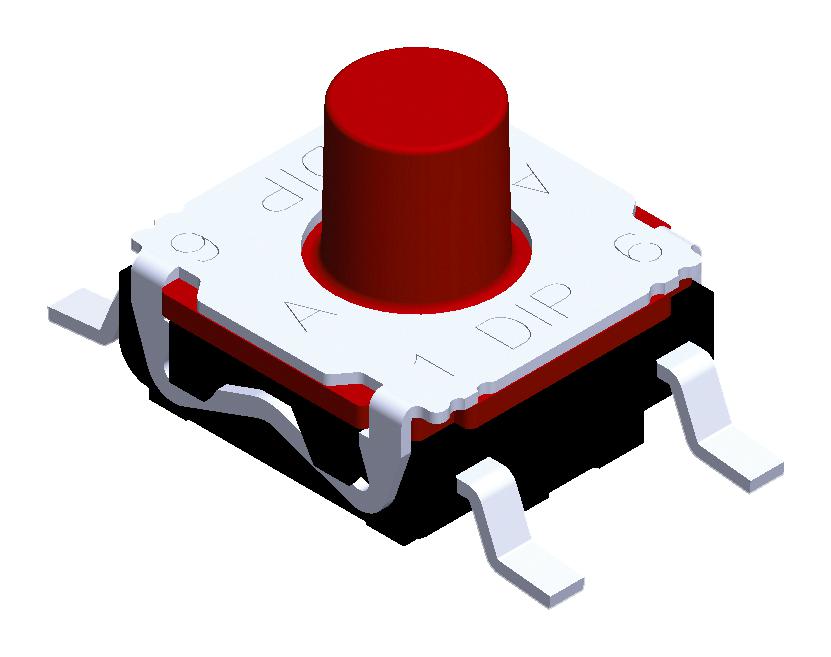

Buy the Multicomp Series Tactile Switch IP67 Waterproof Part Number MP000711
Enhance your electronic designs with our high-quality surface mount tactile switches for industrial, automotive, and communication systems. These switches feature IP67 water and dust resistance, ensuring durability in harsh environments. With a variety of operating forces and extensive cycle life, they deliver reliable performance over time. Easy to install with SMT and bend terminations, they meet RoHS standards and are halogen free. Perfect for applications requiring durability, reliability, and compact design, these switches are an essential component for modern electronic devices.
Get Multicomp tactile switches today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP000711?
You can click on the BUY or RFQ button to purchase MP000711 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000711?
You can download the MP000711 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP000711?
MULTICOMP-PRO
