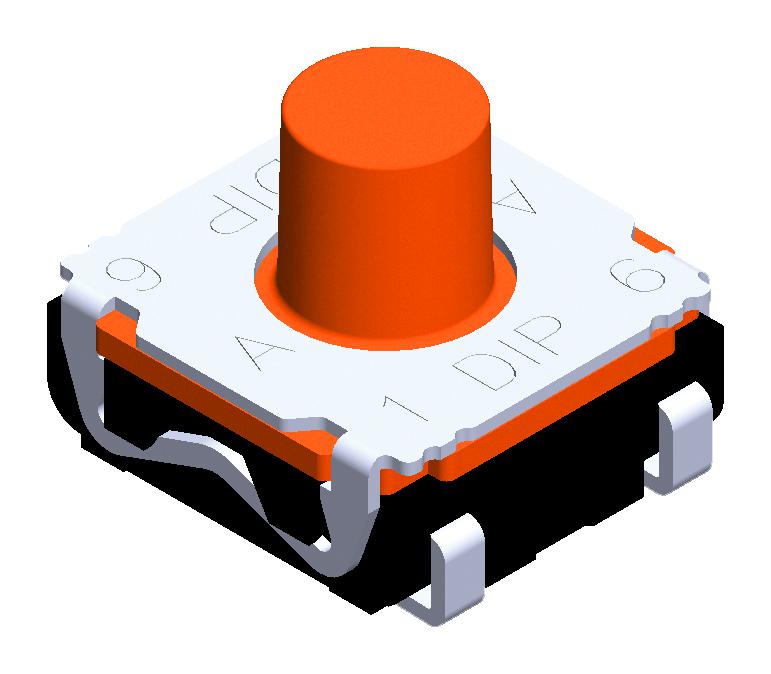

MULTICOMP-PRO MP000718 Surface Mount Tactile Switch
Surface mount tactile switches from multicomp:ro are durable, RoHS compliant, IP67 rated, and water and dustproof. These SPST switches feature long travel, high cycle life, and various operating forces, making them ideal for automotive, industrial, cellular, and network applications. They operate within -40°C to +85°C and withstand 250V AC dielectric strength. Designed with bend terminations, they ensure secure installation and long-term performance, suitable for demanding environments requiring reliable tactile feedback and IP67 protection.
MULTICOMP-PRO MP000718 Surface Mount Tactile Switch Specifications:
- Contact Rating: 20mV DC to 32V DC / 1mA to 50mA
- Contact Resistance: > 100mΩ max
- Insulation Resistance: > 10MQ min at 100V DC
- Dielectric Strength: 250V AC for 1 minute
- Operating Force: 160+50gf (brown), 200-250gf (rad), 350-2100gf (salmon)
- Travel: 0.3mm (160gf), 0.35mm (200gf), 0.5mm (350gf)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C (short-term)
- Mechanical Life: 5,000,000 cycles (160gf), 500,000 cycles (200gf), 300,000 cycles (350gf)
- Ingress Protection: IP67
- Mounting: Surface mount, bend terminations
- Material: Halogen-free, RoHS compliant
- Size: Dimensions vary with model, typical length around 11-29mm, height about 3.5mm
- Application Areas: Automotive, industrial electronics, cellular phones, network infrastructure, elevator systems
Buy the Buy multicomp Surface Mount Tactile Switch Part Number MP000718 Online
Enhance your projects with the high-performance multicomp surface mount tactile switch, model MP000718. Designed for demanding environments, it offers excellent durability with 5 million switch cycles at 160gf, IP67 waterproof protection, and a broad operating temperature range from -40°C to +85°C. Its small form factor ensures easy integration into automotive, industrial, and cellular applications. With RoHS compliance and bend-terminals for secure mounting, this switch provides reliable tactile feedback and long service life for critical electronic systems.
Order your multicomp Series MP000718 IP67 waterproof tactile switch today and enhance your industrial and automotive electronics with high durability and reliable tactile feedback.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP000718?
You can click on the BUY or RFQ button to purchase MP000718 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000718?
You can download the MP000718 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP000718?
MULTICOMP-PRO
