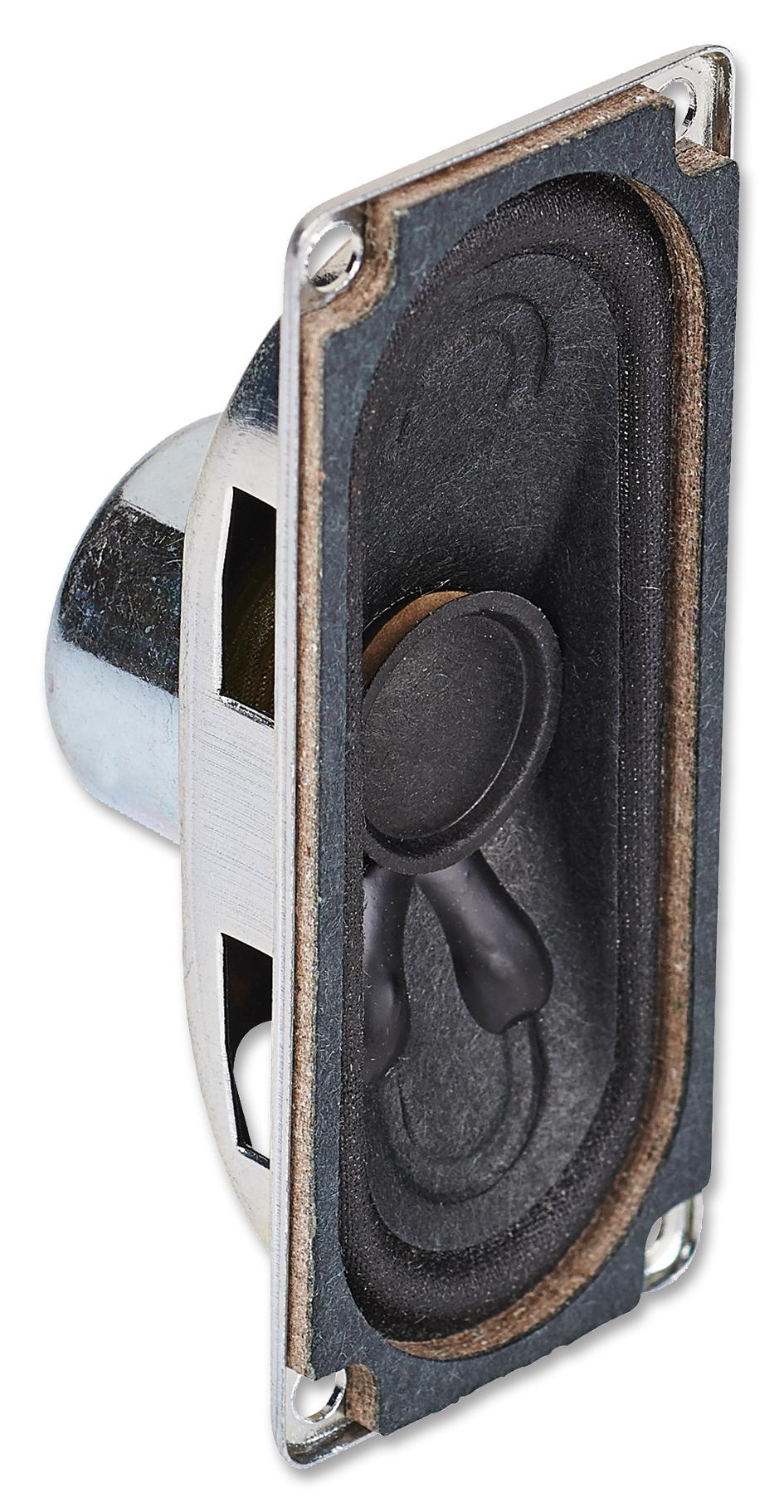

MULTICOMP PRO MCABS235RC Audio Speaker
This 2W speaker features an 80mm x 30mm size with a black paper and cloth cone, mounted on a metal housing. It provides a resonant frequency of 300 +70Hz and an SPL of 86 +3dB at 1W, 1M. The speaker operates within a frequency range of 100-20,000 Hz, suitable for various audio applications. Made of durable Nd-Fe-B magnet material, it can withstand temperatures from -20°C to +60°C during operation and -30°C to +70°C during storage. Weighing 35g, it is RoHS compliant and offers reliable performance.
MULTICOMP PRO MCABS235RC Audio Speaker Specifications:
- Power Nominal: 2W
- Power Max: 5W
- Impedance: 28Ω ±15%
- Resonant Frequency: 300 +70Hz
- Sound Pressure Level: 86 +3dB at 1W, 1M
- Frequency Range: 100-20,000 Hz
- Cone Material: Black Paper and Cloth
- Housing Material: Metal
- Magnet Material: Nd-Fe-B
- Magnet Size: 12.5 x 2.5 mm
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +70°C
- Weight: 35g ±5%
- RoHS Compliant
Buy the Buy multicomp Speaker Part Number MCABS235RC Online
Enhance your electronic projects with this high-quality 2W audio speaker featuring an 80mm x 30mm size, durable metal housing, and a wide frequency response. Perfect for compact systems, it delivers clear sound with a resonant frequency of 300Hz and SPL of 86dB at 1W. Made from black paper and cloth cone, it withstands temperatures from -20°C to +60°C during operation and -30°C to +70°C storage. RoHS compliant, lightweight at 35g, and ideal for various sound applications, it's available online for quick delivery.
Buy multicomp MCABS235RC now and experience reliable audio performance with a compact design and robust construction ideal for electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCABS235RC?
You can click on the BUY or RFQ button to purchase MCABS235RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCABS235RC?
You can download the MCABS235RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCABS235RC?
MULTICOMP PRO
