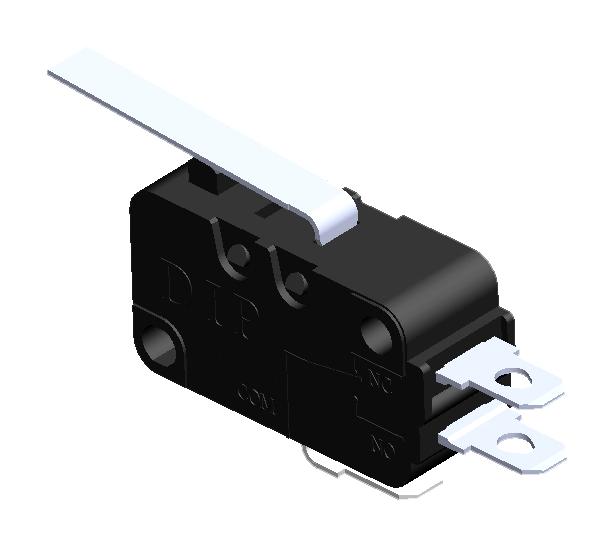

MULTICOMP PRO MP000780 Panel Mount Microswitch
Panel mount snap action microswitches are high-reliability electrical switches designed for precise control in various applications such as notebooks, audio equipment, and white goods. They feature either solder or quick-connect terminals, with options including hinge, roller, and pin plunger actuators. These switches support a contact rating of 5A at 250V AC, with durable mechanical and electrical cycles, and compliance with RoHS standards. Suitable for demanding environments, they offer reliable operation with specific force and travel parameters for smooth performance. Available in multiple configurations, they ensure seamless integration into machinery and electronic systems.
MULTICOMP PRO MP000780 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 600V AC (50Hz or 60Hz) for 1 minute between terminals of same polarity
- RoHS Compliant
- Operating Frequency: Mechanical 120 ops/min, Electrical 20 ops/min
- Over Travel: 1.6mm Min
- Operation Position: 15.2mm ±1.2mm
- Pretravel: 4mm Max
- Actuators: Hinge Lever, Short Hinge Roller Lever, Pin Plunger
- Operating Force: 0.49N to 0.98N depending on model
- Dimensions: 4.80x84.80mm (varies per model)
- Overtravel: 0.8mm Min
- Release Force: 0.04N Min
- Voltage Resistance: 600V AC between terminals, 1500V AC between terminals and ground
Buy the Buy multicomp Panel Mount Snap Action Microswitches Part Number MP000780 Online
Purchase multicomp panel mount microswitches online and enhance your electronic assemblies with durable, high-performance switches. Available in various configurations including hinge, roller, and pin plunger actuators, these switches support a 5A contact rating at 250V AC for reliable operation in notebooks, audio equipment, and white goods. They feature solder or quick-connect terminals, RoHS compliance, and support up to 5 million mechanical cycles. Order now for swift delivery and seamless integration into your control and automation projects.
Buy multicomp MP000780 now and experience unmatched reliability and performance in your electronic control systems.
