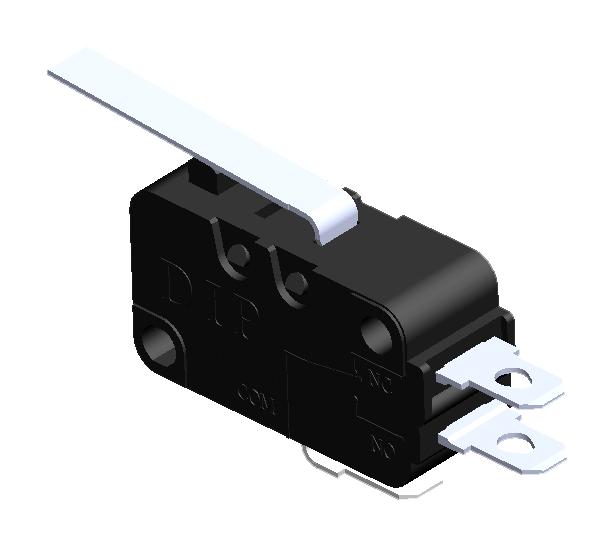

MULTICOMP PRO MP000781 Hinge Lever Microswitch
The MP000781 is a high-quality panel mount snap action microswitch designed for precise switching operations in industrial and consumer applications. Featuring quick connect terminals, it offers a contact rating of 5A at 250V AC, with a mechanical durability of 5 million cycles. Its hinge lever actuator provides reliable operation, with an operating force of 0.49N. Suitable for use in notebooks, audio equipment, and white goods, this switch ensures long-lasting performance and dependable switching features suitable for automation, control systems, and electronic devices.
MULTICOMP PRO MP000781 Hinge Lever Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC for 1 minute
- Operating Frequency: Mechanical 120 operations/min, Electrical 20 operations/min
- Overtravel: 1.6mm Min.
- Operating Position: 15.2mm +1.2mm
- Pretravel: 4mm Max.
- Actuator: Hinge Lever
- Operating Force: 0.49N Max.
- Dimensions: Approximately 22.5mm x 15.2mm x 14.7mm
- RoHS Compliant
Buy the Multicomp MP000781 – Reliable Hinge Lever Microswitch for Industrial Applications
Purchase the multicomp MP000781 online now for dependable performance in industrial, automation, and consumer electronic applications. This high-quality hinge lever microswitch features quick connect terminals, a 5A, 250V AC rating, and excellent durability for reliable switching. Ideal for notebooks, audio equipment, white goods, and control systems, this switch guarantees long-term operation and precision. Shop now to ensure your projects benefit from trusted quality and swift delivery—perfect for engineers and technicians requiring durable components for demanding environments.
Get multicomp MP000781 today—built for precision and long-lasting durability in control systems and consumer electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000781?
You can click on the BUY or RFQ button to purchase MP000781 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000781?
You can download the MP000781 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000781?
MULTICOMP PRO
