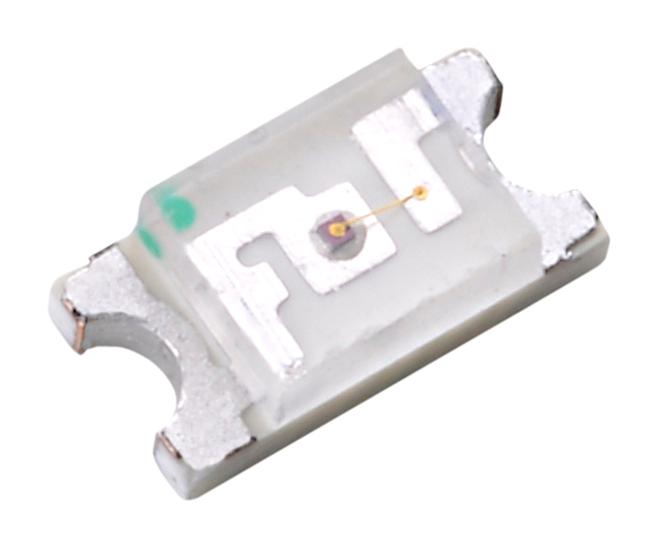

MULTICOMP PRO MP007092 Red SMD LED
The 1206 SMD Chip LED in red offers a compact, RoHS-compliant design measuring 3.2mm x 1.6mm with a thickness of 0.7mm. It features a wide viewing angle suitable for backlight and indicator applications across automotive and telecommunications equipment. Its high luminous intensity, ranging from 500 to 845 millicandelas, coupled with a forward voltage of 1.8V at 20mA, makes it a reliable choice for dashboard backlighting, LCD switches, and symbols. The LED can operate within -40°C to +85°C, providing durability in harsh environments. It is ideal for indication and backlighting in various electronic devices, with optional different lens types and colors available.
MULTICOMP PRO MP007092 Red SMD LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 0.7mm thickness
- Emitted Color: Red
- Wavelength: 617 - 629 nm
- Luminous Intensity: 500 - 845 millicandelas
- Forward Voltage: 1.8V at 20mA
- Max Power Dissipation: 62 mW
- Forward Current: 25 mA (Peak 100mA with pulse)
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 120°
- RoHS Compliant
- Tape Packaging: 4.00 mm +0.10 mm, 1.55 mm +0.05 mm, 8.00 mm +0.30 mm
Buy the Multicomp Series 1206 Red LED: MP007092
Purchase the Multicomp Series 1206 Red LED MP007092 online today and ensure your electronic devices stand out with bright, reliable indication. This compact 3.2mm x 1.6mm surface-mount LED provides a wide viewing angle, high luminous intensity up to 845 millicandelas, and operates efficiently within -40°C to +85°C. Its RoHS compliance guarantees environmentally friendly manufacturing. Perfect for backlighting dashboard components, LCD symbols, and indicator lights, this LED is easy to install with tape packaging and supports reflow soldering for quick assembly.
Order your Multicomp Series 1206 Red LED MP007092 today and enhance your electronic projects with reliable, high-brightness illumination solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007092?
You can click on the BUY or RFQ button to purchase MP007092 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007092?
You can download the MP007092 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007092?
MULTICOMP PRO
