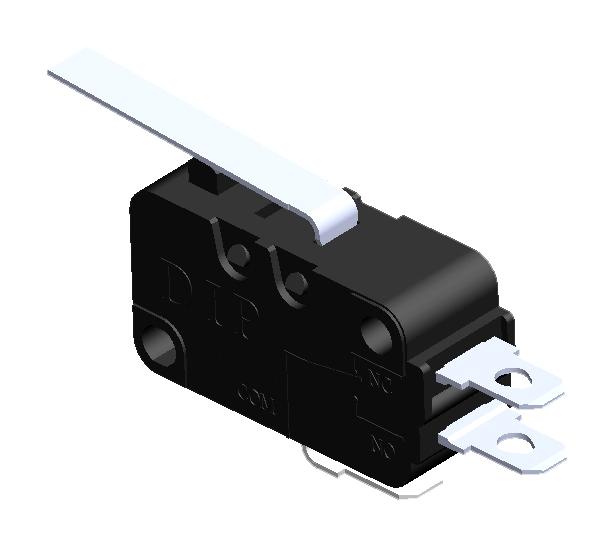

MULTICOMP PRO MP000783 Panel Mount Microswitch
These panel mount snap action microswitches are reliable and versatile components suitable for various electronic and industrial applications. Designed with hinge or roller levers, they support switching currents up to 5A at 250V AC and feature high durability with over 5 million mechanical cycles. They are available with solder or quick-connect terminals for easy installation. Their compact dimensions and precise operating characteristics make them ideal for notebook, audio equipment, and white goods, ensuring dependable performance in demanding environments.
MULTICOMP PRO MP000783 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: > 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC (50Hz or 60Hz) across terminals for 1 min
- Between terminal and ground: 1500V AC for 1 min
- Between non-current-carrying parts: 1500V AC for 1 min
- Operating Frequency: Mechanical 120 ops/min, Electrical 20 ops/min
- Over Travel: 1.6mm Min.
- Movement Differential: 0.8mm Max
- Operating Position: 15.2mm ±1.2mm
- Pretravel: 4mm Max.
- Release Force: 0.04N Min.
- Overtravel: 0.8mm Min.
- Actuators: Hinge Lever, Short Hinge Roller Lever, Pin Plunger
- Operating Force: 0.49N to 0.98N depending on model
- Dimensions: Varies with actuator type, approximately 14.7mm to 22.6mm length, and suitable mounting configurations
Buy the Multicomp Series Microswitches: MP000783
Order the multicomp Panel Mount Microswitch MP000783 now for your electronic and industrial projects. Designed with high durability and precision, this switch features a 5A, 250V AC contact rating, quick-connect terminals for easy installation, and multiple actuator options including hinge, roller, and pin plunger. Its compact size and robust construction ensure consistent performance and long-lasting service life, making it ideal for notebooks, white goods, and audio equipment. Purchase online today for fast delivery and quality assurance.
Get multicomp MP000783 today—built for precision, durability, and reliable switching in electronic devices and industrial systems.
