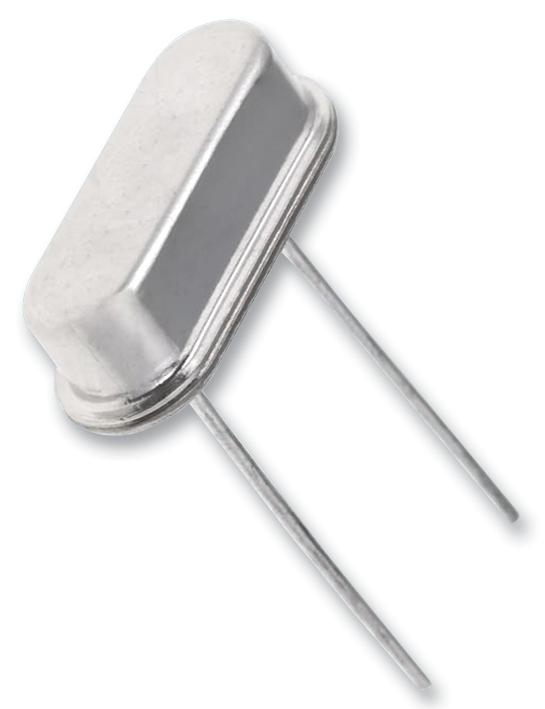

MULTICOMP PRO HC49S3686430507030ATF Crystal Oscillator
This product is suitable for clock and timing applications, offering reliable performance. It is part of the Multicomp Pro range, rated 4.6 out of 5 stars by users, and comes with a 12-month limited warranty. Customers trust its stability for industrial and microcontroller use, featuring a low profile design with a height of 1.4mm for space-critical applications. Its high-quality ceramic package ensures durability and precise frequency control, making it ideal for communication, instrumentation, and embedded systems. Easy to tape and reel for automated assembly, it delivers consistent performance across temperature ranges.
MULTICOMP PRO HC49S3686430507030ATF Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 30 MHz and 30 to 60 MHz
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 ppm or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: see ESR table
- Shunt Capacitance: 5pF maximum at 18 MHz or 7pF above 18 MHz
- Drive Level: 100 μW maximum (>5 MHz), 200 μW maximum (<5 MHz)
- Insulation Resistance: 500 MΩ at 100 V DC
- Aging: ±5 ppm per year
- Physical Dimensions: Height 1.4mm, Diameter approximately 4mm, surface mount package suitable for automated placement
Buy the Multicomp Series Crystal: 10-30 MHz and 30-60 MHz - HC49S3686430507030ATF
Order the Multicomp series crystal HC49S3686430507030ATF online today to ensure your timing and clocking needs are met with high precision and durability. Its low profile ceramic package makes it ideal for space-constrained designs, offering stable frequency performance across a wide temperature range. Whether for industrial, communication, or microcontroller applications, this cost-effective surface-mount crystal guarantees consistent oscillation with minimal ESR. Taped and reeled, it simplifies automatic assembly, ensuring quick delivery and easy integration into your manufacturing process.
Buy Multicomp series crystal HC49S3686430507030ATF now and experience unmatched reliability and performance for precise timing in your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49S3686430507030ATF?
You can click on the BUY or RFQ button to purchase HC49S3686430507030ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49S3686430507030ATF?
You can download the HC49S3686430507030ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49S3686430507030ATF?
MULTICOMP PRO
