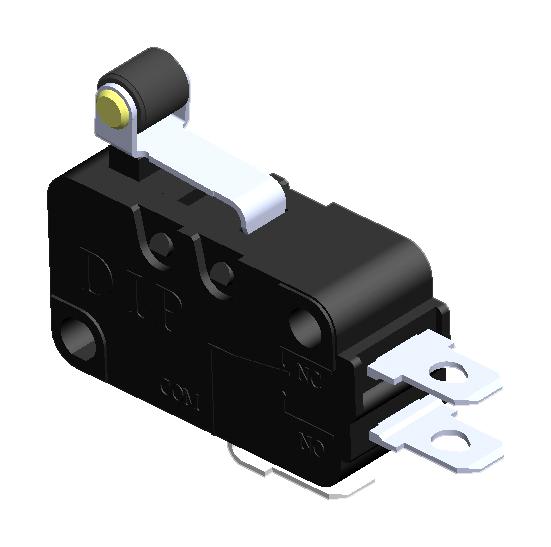

MULTICOMP PRO MP000784 roller lever microswitch
The microswitch, with a roller lever actuator, handles electrical loads up to 5A at 250V AC and features a SPDT configuration suitable for automation and control applications. Its compact design includes solder and quick-connect terminals for easy installation and maintenance. With a mechanical durability of 5,000,000 cycles and an electrical durability of 100,000 cycles, this switch offers reliable performance in industrial environments. Its operating force varies from 0.49N to 0.98N depending on the model, with dimensions of approximately 14.7mm +0.4mm for precise control.
MULTICOMP PRO MP000784 roller lever microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: > 100mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC (50Hz/60Hz) for 1 min between terminals of same polarity
- Between terminals and ground: 1500V AC for 1 min
- Between terminals and non-current-carrying metal parts: 1500V AC for 1 min
- Operating Force: 0.49N to 0.98N depending on model
- Over Travel: 1.6mm minimum
- Movement Differential: 0.8mm maximum
- Operating Position: 15.2mm +1.2mm
- Pretravel: 4mm max
- Dimensions: ~14.7mm +0.4mm
Buy the Multicomp MP000784 – Reliable Roller Lever Microswitch for Industrial Applications
Purchase the multicomp roller lever microswitch MP000784 online today and benefit from its robust construction, reliable 5A at 250V AC capacity, and durable design. Ideal for automation, white goods, and audio equipment, this switch features solder and quick-connect terminals for easy integration. With a lifespan of 5 million cycles and high dielectric strength, it ensures long-lasting, dependable performance in various industrial and control applications. Buy now and elevate your project’s reliability with proven quality.
Order your multicomp roller lever microswitch MP000784 today and enhance your control systems with its reliable, high-precision switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000784?
You can click on the BUY or RFQ button to purchase MP000784 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000784?
You can download the MP000784 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000784?
MULTICOMP PRO
