MULTICOMP PRO SPC21177 Illuminated Rocker Switch

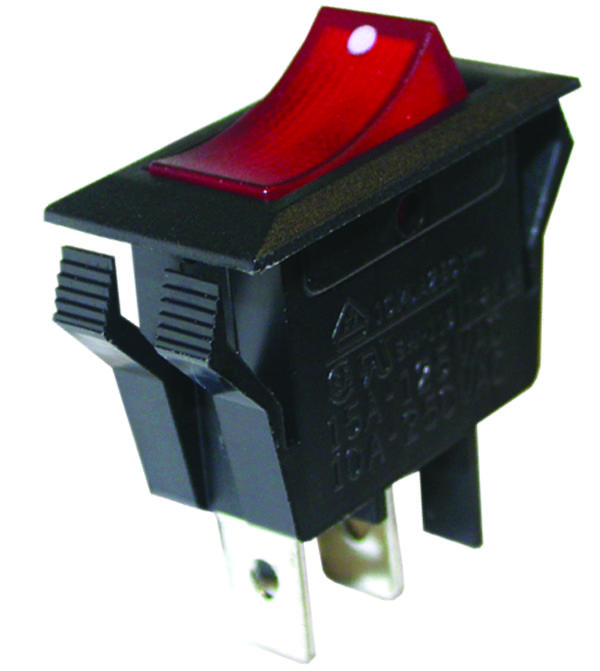

The SPC21177 is a single-pole, single-throw illuminated rocker switch featuring silver-plated copper alloy contacts and terminals. It has a black nylon 6/6 housing rated for UL94V-0 fire safety standards. The switch includes a red polycarbonate actuator, with a nickel-plated brass bushing and tin-plated brass support for durability. It offers a maximum contact resistance of 30 milliohms, minimum insulation resistance of 1000 megaohms at 500VDC, dielectric strength of 1000 VRMS, and an operational life of 10,000 cycles. The operating temperature range is from -30°C to 85°C, making it suitable for industrial applications.
MULTICOMP PRO SPC21177 Illuminated Rocker Switch Specifications:
- Electrical: 115A at 125V AC, 10A at 250V AC
- Contact Resistance: 30mΩ maximum
- Insulation Resistance: 1000 MΩ minimum at 500V DC
- Dielectric Strength: 1000 VRMS
- Mechanical Life: 10,000 Cycles
- Operating Temperature: -30°C to +85°C
- Housing Material: Nylon 6/6, UL94V-0, Black
- Actuator Material: Polycarbonate, Red
- Bushing Material: Nickel-plated Brass
- Support Material: Tin-plated Brass
- Contact/Terminals: Copper Alloy, Silver Plated
Buy the Multicomp SPC21177 – Reliable Illuminated Rocker Switch for Industrial Applications
Enhance your industrial control system with the durable and reliable SPC21177 illuminated rocker switch. Featuring a red polycarbonate actuator and silver-plated contacts, it offers excellent electrical performance and long life. Rated for 115A at 125V AC and 10A at 250V AC, this switch is ideal for demanding environments. Its robust nylon housing and brass supports ensure durability and safety, operating efficiently from -30°C to 85°C. Easy to install and perfect for control panels requiring dependable switching solutions.
Buy Multicomp SPC21177 now and experience unmatched reliability and performance in your industrial control panels.
