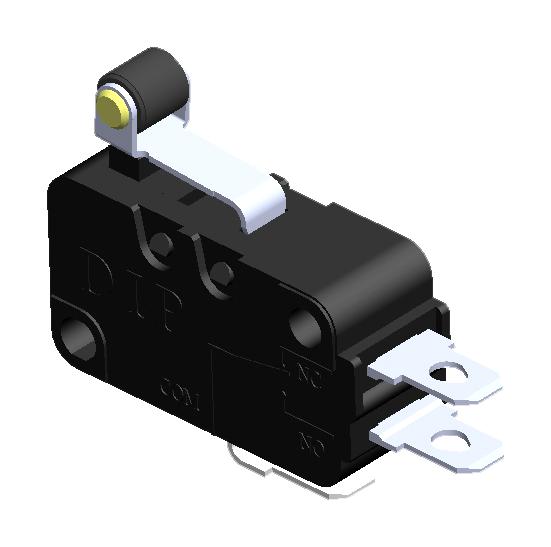

MULTICOMP PRO MP000785 Panel Mount Microswitch
The microswitch is a panel mount snap action switch with a roller lever actuator. It supports a 5A, 250V AC circuit with SPDT configuration, designed for reliable operation in applications such as notebooks, audio equipment, and white goods. Featuring solder and quick-connect terminals, it offers high mechanical durability of 5,000,000 cycles and electrical durability of 100,000 cycles. The switch's dimensions and operating forces vary based on the model, ensuring versatile application fitting. It is RoHS compliant, with specific operating, pretravel, and release force characteristics suitable for precise control tasks.
MULTICOMP PRO MP000785 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: >100mQ max.
- Insulation Resistance: 100MQ min. at 500V DC
- Dielectric Strength: 600V AC for 1 minute (between terminals of same polarity), 1500V AC for 1 minute (ground and non-current parts)
- Operating Frequency: Mechanical 120 ops/min, Electrical 20 ops/min
- Over Travel: 1.6mm Min.
- Movement Differential: 0.8mm Max.
- Operating Position: 15.2mm +1.2mm
- Pretravel: 4mm Max.
- Actuator: Hinge Lever, Short Hinge Roller Lever, Pin Plunger
- Operating Force: 0.49N to 0.98N depending on model
- Dimensions: Length approximately 14.7mm +0.4mm, width variables based on actuator type
- RoHS Compliant
- Circuit: SPDT
Buy the Multicomp Series Snap Action Microswitch: MP000785
Purchase the multicomp SeriesRoller Lever Microswitch MP000785 online today to benefit from high-quality construction, reliable switching performance, and versatile mounting options suitable for notebooks, audio devices, and white goods. Designed with solder and quick-connect terminals, it provides excellent electrical and mechanical durability, supporting demanding industrial and consumer applications. Ensure your project’s success by choosing this robust switch that features RoHS compliance, precise operating forces, and configurable actuator options for versatile use. Buy now for dependable, professional-grade switching solutions.
Order your multicomp SeriesRoller Lever Microswitch MP000785 today and ensure reliable performance in your automation projects with high durability and precision.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000785?
You can click on the BUY or RFQ button to purchase MP000785 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000785?
You can download the MP000785 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000785?
MULTICOMP PRO
