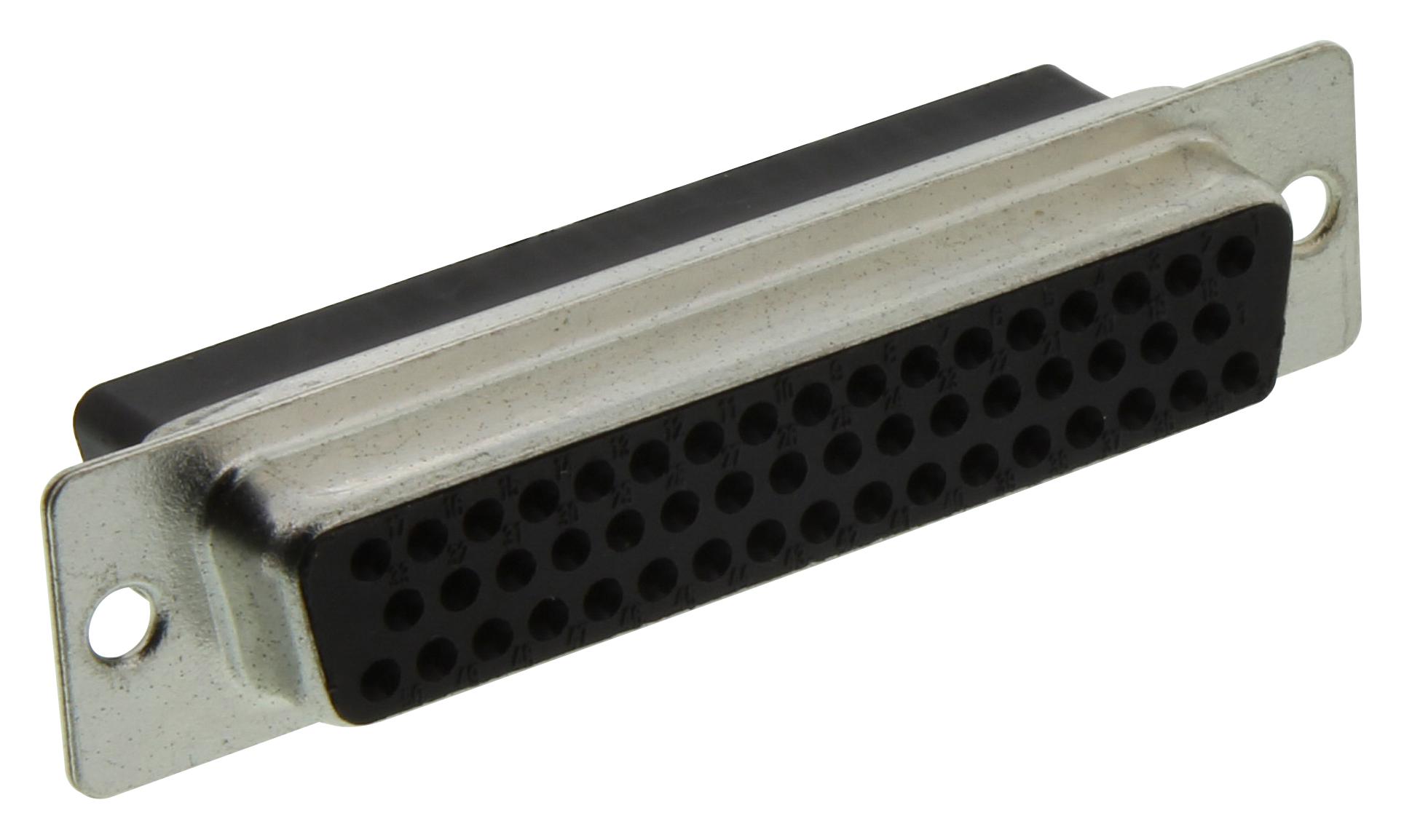

MULTICOMP-PRO MC24557 D-Sub Connector
The MC24557 is a durable D-sub standard female crimp connector with tin-plated front and back shells, designed for reliable electrical connections. Crafted from black PBT and glass fiber-reinforced UL94V-0 material, it ensures high insulation and mechanical stability. Supporting a 3A current rating, it has an insulation resistance of at least 5000 MΩ at 500 VDC, with a dielectric withstand voltage of 1000 V AC for one minute. Suitable for operation from -25°C to +85°C, this connector features a standard mounting hole and is ideal for industrial, computer, and telecommunications applications, with contacts sold separately.
MULTICOMP-PRO MC24557 D-Sub Connector Specifications:
- Current Rating: 3A
- Insulation Resistance: 5000 MΩ min. at 500 V DC
- Dielectric Withstand Voltage: AC 1000 V min. (for 1 minute)
- Operating Temperature: -25°C to +85°C
- Contact Type: Receptacle (Female)
- Material: PBT & Glass-fibre reinforced UL-94V-0
- Color: Black
- Shell Finish: Tin-plated front and back shells, without grounding indents
- Mounting Type: Standard Hole
- Number of Contacts: 50
- Dimensions: (Based on typical D-sub connector shapes, approximate length 62 mm, width 27 mm)
Buy the Multicomp Series MC D-Sub Female Crimp Connector: MC24557
Discover the high-performance Multicomp Series D-Sub connector MC24557, designed for industrial and computer applications. Featuring tin-plated shells and a robust UL94V-0 rated insulator, this connector offers excellent insulation resistance, a 3A current rating, and operation from -25°C to +85°C. Its compact design with standard mounting holes makes it ideal for space-constrained setups. Suitable for rugged environments, it supports reliable signal transmission and power delivery, with contacts sold separately. Purchase online today to secure dependable connections for your machinery and electronic systems.
Order your Multicomp Series MC24557 D-sub female crimp connector today and ensure reliable, high-quality connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC24557?
You can click on the BUY or RFQ button to purchase MC24557 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC24557?
You can download the MC24557 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC24557?
MULTICOMP-PRO
