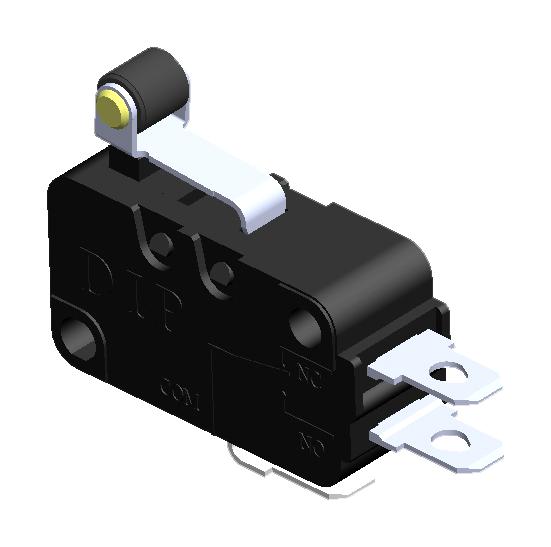

MULTICOMP PRO MP000786 Panel Mount Microswitch
These panel mount snap action microswitches are versatile, available with various actuator types including hinge, roller, and pin plunger. Designed for reliable operation in applications such as notebooks, audio equipment, and white goods, they feature solder and quick-connect terminals. With a contact rating of 5A at 250V AC and durability of up to 5 million cycles, these switches ensure long-lasting performance. They are RoHS compliant, withstand multiple electrical and mechanical operations, and have precise operating characteristics suitable for high-demand environments.
MULTICOMP PRO MP000786 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 5,000,000 cycles
- Electrical Durability: 100,000 cycles
- Contact Resistance: > 100mQ max.
- Insulation Resistance: 100MQ min. at 500V DC
- Dielectric Strength: 600V AC for 1 minute
- Operating Frequency: Mechanical 120 ops/min, Electrical 20 ops/min
- Over Travel: 1.6mm min.
- Operating Force: 0.49N to 0.98N depending on model
- Pretravel: 4mm max. (hinge), 6mm max. (pin plunger)
- Actuator Types: Hinge Lever, Roller Lever, Pin Plunger
- Dimensions: approximately 4mm thickness, with specific height/width depending on model
- RoHS Compliant
Buy the Buy multicomp Panel Mount Snap Action Microswitch Part Number MP000786 Online
Purchase multicomp Panel Mount Microswitches online for high-performance switching in notebooks, white goods, and audio equipment. Featuring hinge, roller, and pin plunger actuators, these switches deliver reliable operation with a contact rating of 5A at 250V AC, ensuring durability for up to 5 million cycles. They come with solder or quick-connect terminals, RoHS compliance, and precise operating characteristics. Perfect for demanding electronic applications, buy online for fast delivery and trusted quality in industrial control and consumer electronics.
Get multicomp MP000786 today—built for reliable switching performance with long-lasting durability in electronic devices.
