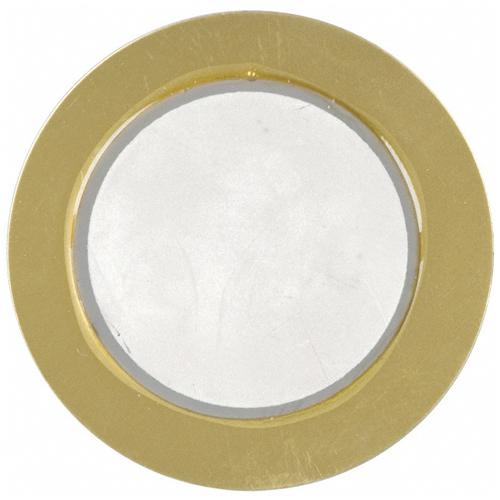

MULTICOMP PRO MCFT31G10A1135 Piezo Sensor
This piezo element from Multicomp Pro features a diaphragm designed for high-frequency applications, resonating at 21 kHz with a resonant resistance of up to 5000 ohms. It has a capacitance of 60000 pF with a tolerance of ±30% at 100 Hz and operates within a temperature range of -20°C to +60°C. Made with ceramic and silver electrode, it is RoHS compliant, suitable for various sensing and audio devices with dimensions approximately 0.202 inches by 0.05 inches, ensuring reliable performance in industrial and consumer electronics.
MULTICOMP PRO MCFT31G10A1135 Piezo Sensor Specifications:
- Resonant Frequency: 21 kHz ±0.5 kHz
- Resonant Resistance: Max 5000 ohms
- Capacitance: 60000 pF ±30% at 100 Hz
- Input Voltage: Max 30 Vp-p
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Material: Ceramic with silver electrode
- Dimensions: Approximately 0.202 inches by 0.05 inches
- RoHS Compliant
- Sus304 metallic support
Buy the Multicomp Series Piezo Element: MCFT31G10A1135
Order the Multicomp Series Piezo Sensor MCFT31G10A1135 online today and enjoy reliable performance in audio, vibration, and sensing applications. Built with ceramic and silver electrodes, this RoHS-compliant device resonates at 21 kHz, providing accurate and consistent signals vital for industrial and electronic projects. Its capacitance of 60000 pF at 100 Hz, combined with a max input voltage of 30 Vp-p, ensures durability and stability across temperature ranges from -20°C to +60°C. Purchase now for quality and precision.
Get Multicomp Series Piezo Element MCFT31G10A1135 today—designed for high-frequency sensing, precise operation, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFT31G10A1135?
You can click on the BUY or RFQ button to purchase MCFT31G10A1135 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT31G10A1135?
You can download the MCFT31G10A1135 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFT31G10A1135?
MULTICOMP PRO
