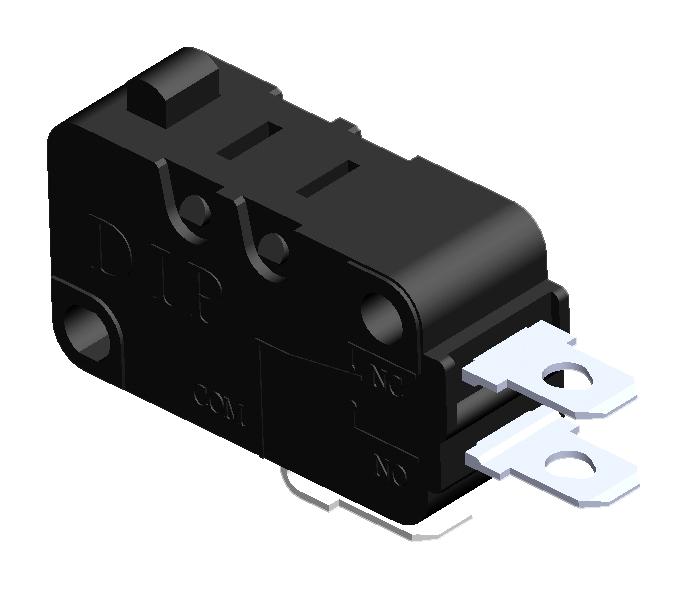

MULTICOMP PRO MP000789 Panel Mount Microswitch
This panel mount snap action microswitch with pin plunger actuator is rated at 5A, 250V AC, and features SPDT contact configuration with solder or quick connect terminals. Designed for reliable switching in equipment such as notebooks, audio devices, and white goods, it offers up to 1,000,000 mechanical cycles and 20 electrical operations per minute. Its compact dimensions and robust construction ensure precise activation, with operating forces ranging from 0.49N to 0.98N. The switch's insulation resistance exceeds 100 MΩ, and dielectric strength is tested at 600V AC for one minute, making it ideal for industrial and consumer applications.
MULTICOMP PRO MP000789 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 1,000,000 cycles
- Electrical Durability: 20 operations/min
- Contact Resistance: >100mΩ max
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC for 1 minute
- Operating Temperature: Not specified, typical -55°C to +105°C
- Operating Force: 0.49N to 0.98N depending on model
- Over Travel: 1.6mm Min.
- Pretravel: up to 6mm
- Actuator Types: Hinge Lever, Roller Lever, Pin Plunger
- Dimensions: Approximately 4.7mm to 14.7mm length, 80x84mm panel cutout
- RoHS Compliant, UL and CSA certified
- Circuit: SPDT (Single Pole Double Throw)
Buy the Buy Multicomp Panel Mount Snap Action Microswitch Part Number MP000789 Online
Purchase the reliable Multicomp Panel Mount Microswitch MP000789 online today. Engineered for durability and high performance, it features a 5A, 250V AC rating and SPDT configuration. Available with solder or quick connect terminals, suitable for notebook, audio equipment, and white goods applications. Its compact size and robust construction ensure seamless operation, with durability up to 1 million cycles and precise actuation forces. Get your high-quality microswitch now to enhance your electronic projects and manufacturing needs.
Buy Multicomp MP000789 now and experience unmatched reliability and compact design for precise switching in various electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000789?
You can click on the BUY or RFQ button to purchase MP000789 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000789?
You can download the MP000789 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000789?
MULTICOMP PRO
