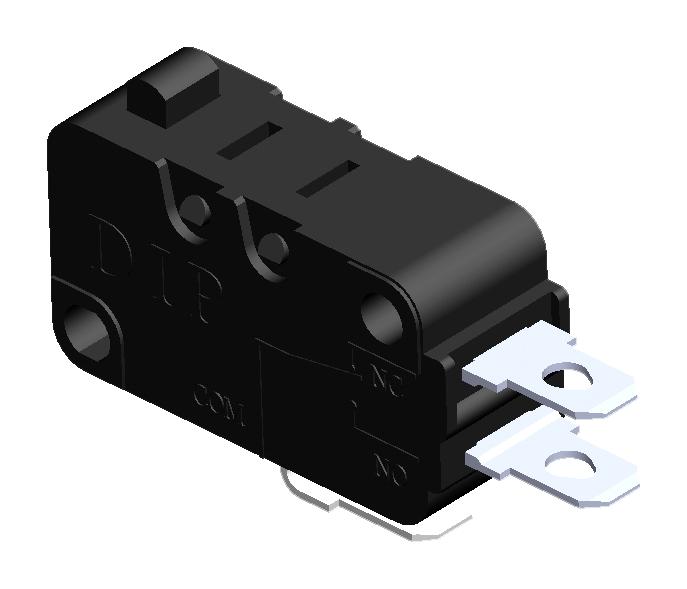

MULTICOMP PRO MP000791 Panel Mount Microswitch
This panel mount snap action microswitch with pin plunger actuator provides reliable switching for industrial and automation applications. Rated at 5A, 250V AC, it supports high durability with 1,000,000 mechanical cycles. Features include various actuator options such as hinge lever, roller lever, and pin plunger, with solder and quick-connect terminals for versatile wiring. Suitable for white goods, audio equipment, and notebooks, it offers excellent insulation resistance over 100 MΩ, dielectric strength of 600V AC, and RoHS compliance for environmentally friendly use. Designed for durability and precision, it ensures consistent performance in demanding environments.
MULTICOMP PRO MP000791 Panel Mount Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 1,000,000 cycles
- Electrical Durability: 600,000 cycles
- Contact Resistance: >100 mΩ max
- Insulation Resistance: 100 MΩ min at 500V DC
- Dielectric Strength: 600V AC for 1 minute between terminals of same polarity
- Operating Frequency: Mechanical 1E5 operations, Electrical 20 operations/min
- Operating Force: 0.49N to 0.98N depending on model
- Over travel: Min 1.6mm, Max 0.8mm
- Movement Differential: Max 0.8mm
- Operating Position: 15.2mm ±1.2mm for hinge and roller types, 14.7mm ±0.4mm for pin plunger
- Pretravel: Max 4mm for hinge/roller, Max 6mm for pin plunger
- Actuator Types: Hinge lever, roller lever, pin plunger
- RoHS Compliant
- Terminals: Solder or Quick-Connect
- Dimensions vary by type, approx. 4mm to 6.3mm in height, width around 80mm
- RoHS compliant to support eco-friendly manufacturing
Buy the Multicomp Series Microswitch: MP000791
Order the reliable panel mount microswitch MP000791 online today for your industrial, automation, or consumer electronic projects. With a 5A, 250V AC rating, excellent insulation resistance, and RoHS compliance, this microswitch guarantees long-lasting, consistent performance. Featuring a pin plunger actuator, it is ideal for control panels, white goods, notebooks, and sound equipment. Its compact design and versatile wiring options, including solder and quick connect terminals, make it easy to install and suitable for demanding environments. Enhance your equipment’s reliability with this high-quality switch now.
Get Multicomp MP000791 today—designed for high durability and precise switching in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000791?
You can click on the BUY or RFQ button to purchase MP000791 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000791?
You can download the MP000791 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000791?
MULTICOMP PRO
