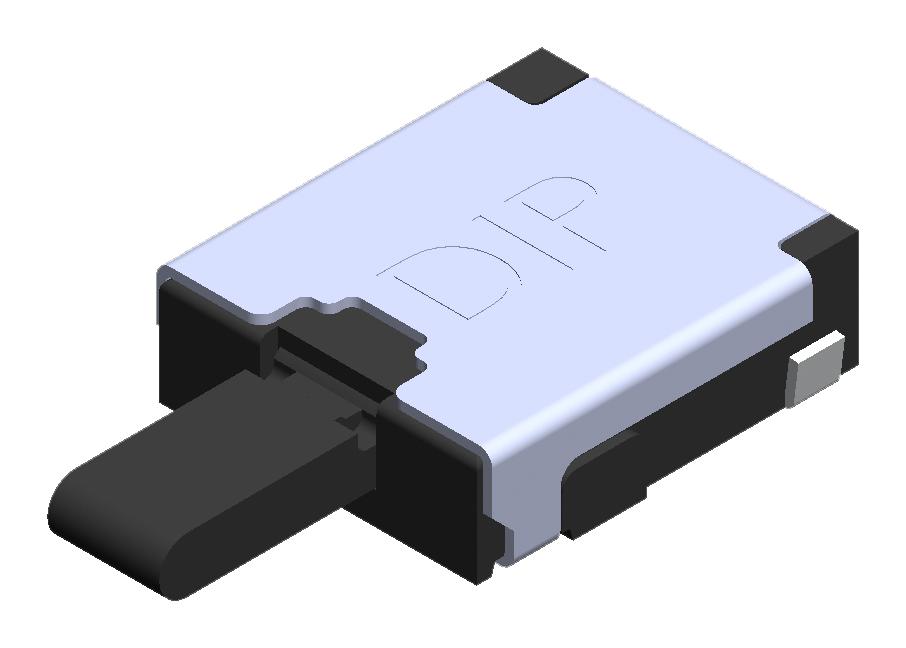

MULTICOMP PRO MP000734 Detector Switch
The detector switch is a versatile safety control device designed for consumer electronics and detection applications. It features flat and bending terminations with long travel type operation, supporting up to 50,000 cycles. This SPST switch operates at 5V DC, with a contact resistance of 10 max., and insulation resistance of at least 100MQ. It is RoHS compliant and halogen-free, with an operating temperature range from 0°C to +60°C and storage from -20°C to +70°C. Suitable for detection of video cameras and open/close monitoring, it ensures reliable performance in safety and heat energy regulation systems.
MULTICOMP PRO MP000734 Detector Switch Specifications:
- Contact Rating: 50uA, 3V DC to 10mA, 5V DC
- Contact Resistance: 10 max.
- Insulation Resistance: 100MQ min.
- Dielectric Strength: 100V AC/1 minute
- Operating Force: 40gf max.
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
- Features: Flat and Bending terminations, Long travel
- RoHS Compliance: Yes
- Halogen Free: Yes
- Life Cycles: 50,000 operations
- Switch Type: SPST, 5V DC
- Application: Consumer electronics, Detection, Safety control
Buy the Buy Multicomp Detector Switch Part Number MP000734 Online
Purchase the high-quality detector switch from Multicomp online today to ensure reliable detection and safety performance in your electronic projects. This versatile switch supports flat and bending terminations with a long travel design, rated at 5V DC with a contact resistance of 10 max. It offers up to 50,000 operation cycles, RoHS compliance, and halogen-free materials. Ideal for consumer electronics, video camera detection, and open/close monitoring, it provides durability, precision, and safety for your application needs.
Buy Multicomp detector switch MP000734 now and enhance your safety and detection systems with reliable performance and long-lasting operation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000734?
You can click on the BUY or RFQ button to purchase MP000734 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000734?
You can download the MP000734 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000734?
MULTICOMP PRO
