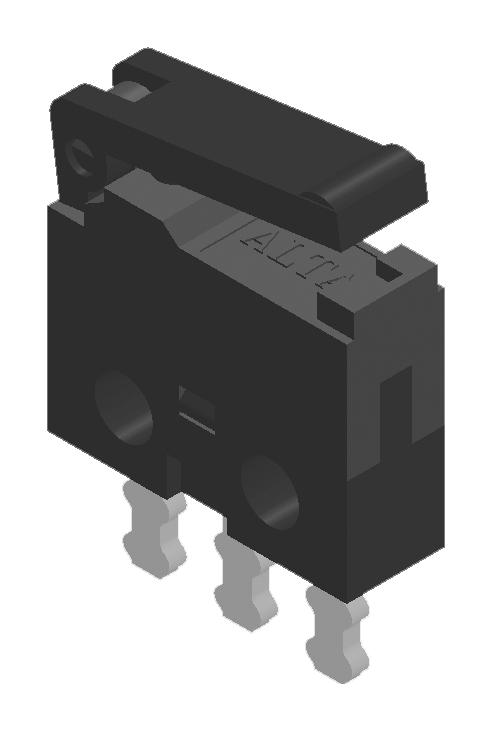

MULTICOMP PRO MP000792 Hinge Lever Microswitch
This high-quality through-hole snap action microswitch features a hinge lever design with a 0.5A/30V DC contact rating, suitable for small electronic devices, mapping, and office equipment. Its mechanical durability reaches 100,000 cycles, with an electrical durability of 50,000 cycles, ensuring long-lasting performance in various industrial and electronic applications. Operating temperature ranges from -40°C to +85°C, with precise operating force of max 0.5N and release force of min 0.03N. The switch supports multiple contact configurations, including SPDT and SPST-NC/NO, for versatile circuit control.
MULTICOMP PRO MP000792 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MO min (at 500V DC)
- Dielectric Strength: 250V AC for 1 minute between same polarity and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: max 0.5N
- Release Force: min 0.03N
- Over Travel: 0.3mm min
- Movement Differential: max 0.7mm
- Operating Position: 6.7mm ±0.5mm
- Free Position: max 8mm
- Pretravel: max 1.8mm
- Terminal Type: Uneven Pitch
- Dimensions: approximately 2.70mm to 3.1mm terminal length, various models
Buy the Buy Premier Farnell Microswitch Part Number MP000792 Online
Purchase the high-quality hinge lever microswitch online from Premier Farnell. Designed for durability and precision, it handles up to 0.5A/30V DC, with a lifespan of 100,000 mechanical cycles. Its versatile contact configurations include SPDT, SPST-NC, and SPST-NO, ideal for small electronic and mapping devices. Operating reliably in temperatures from -40°C to +85°C, it offers excellent insulation resistance and dielectric strength. Order today for long-lasting performance in your electronic and industrial projects, with quick delivery and easy online shopping.
Get Premier Farnell MP000792 today—built for precision, durability, and reliable circuit switching in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000792?
You can click on the BUY or RFQ button to purchase MP000792 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000792?
You can download the MP000792 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000792?
MULTICOMP PRO
