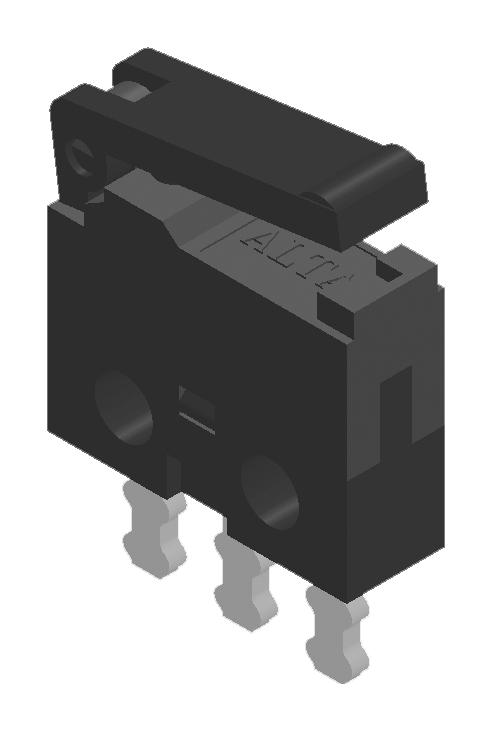

MULTICOMP PRO MP000793 Hinge Lever Microswitch
The microswitch MP000793 by multicomp pro is a hinge lever type switch rated for 0.5A at 30V DC, featuring a through hole mounting design. It offers reliable operation with a contact resistance of less than 100mΩ and withstands up to 100,000 mechanical cycles. The switch has an operating force of 0.5N, a release force of 0.03N, and operates within a temperature range of -40°C to +85°C. It is suitable for use in mapping devices, small audio equipment, office automation, and portable electronic devices, providing precise tactile feedback and long-term durability.
MULTICOMP PRO MP000793 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min. (at 500V DC)
- Dielectric Strength: 250V AC between terminals and ground for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Dimensions: Millimetres
Buy the Multicomp Series Microswitch: MP000793
Order the multicomp Hinge Lever Microswitch MP000793 today for durable, reliable operation in mapping devices, audio equipment, and portable electronics. With a contact rating of 0.5A at 30V DC, it delivers long-lasting performance through up to 100,000 mechanical cycles. Its precise tactile feedback and compact through hole design make it ideal for tight spaces and critical controls. Enhance your project’s reliability with this high-quality switch, available online for quick and easy purchase, ensuring your industrial and electronic applications run smoothly.
Buy multicomp MP000793 microswitch now and experience unmatched reliability and performance in your electronic and automation projects.
