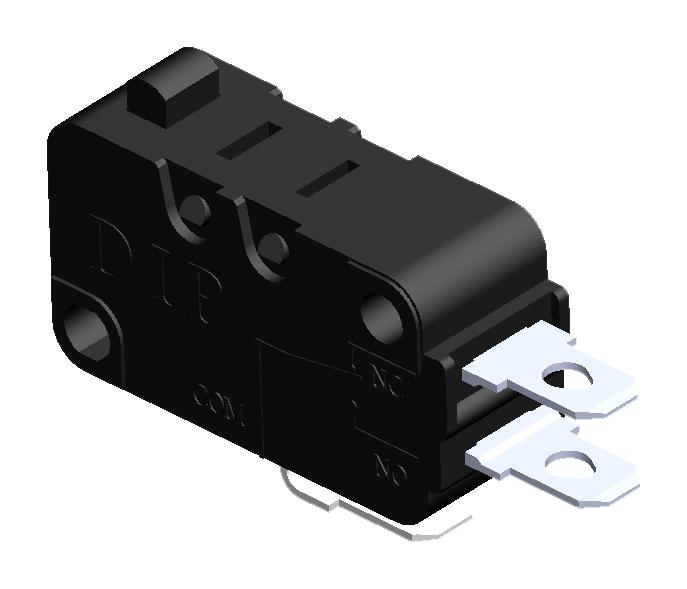

MULTICOMP PRO MP000790 Pin Plunger Microswitch
This pin plunger microswitch offers reliable switching with a 5A, 250V AC rating, and a compact design suitable for various applications such as white goods, audio equipment, and notebooks. It features a durable construction with a mechanical life of 1,00,000 cycles and electrical durability of 20 operations per minute. The switch has a compact size with a pin plunger actuator, making it ideal for precise control and switching in tight spaces, providing long-lasting performance with RoHS compliance for environmentally responsible use.
MULTICOMP PRO MP000790 Pin Plunger Microswitch Specifications:
- Contact Rating: 5A at 250V AC
- Mechanical Durability: 1,00,000 cycles
- Electrical Durability: 20 operations/min
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min (at 500V DC)
- Dielectric Strength: 600V AC (50Hz or 60Hz) for 1 minute
- Between each terminal and ground: 1500V AC for 1 minute
- Operating Frequency: Mechanical 120 ops/min max, Electrical 20 ops/min max
- Actuator Type: Pin Plunger
- Pretravel: 1.2mm max
- Overtravel: 4mm max
- Operating Force: 0.49N max
- Dimensions: 14.7mm +0.4mm
- RoHS Compliant
Buy the Buy multicomp Microswitch Part Number MP000790 Online
Purchase the multicomp MP000790 pin plunger microswitch online today for reliable switching in white goods, audio equipment, and notebooks. Featuring a 5A, 250V AC rating, this switch offers a mechanical life of 100,000 cycles and electrical durability of 20 operations per minute, ensuring long-term performance. Its compact size and durable construction make it suitable for tight spaces, providing precise control and switching in various industrial and consumer applications. Buy now to enhance your equipment’s reliability and efficiency with proven quality.
Get multicomp MP000790 today—designed for precise switching and long-lasting durability in your applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000790?
You can click on the BUY or RFQ button to purchase MP000790 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000790?
You can download the MP000790 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000790?
MULTICOMP PRO
