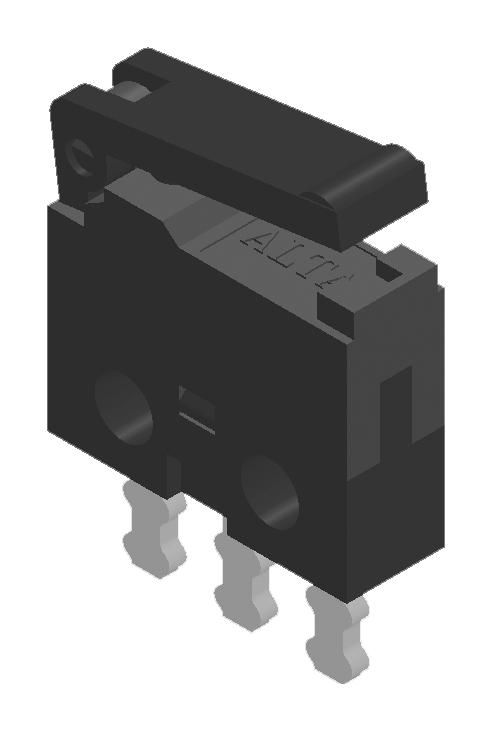

MULTICOMP PRO MP000795 Microswitch
This high-precision through hole microswitch features a hinge lever design with a 0.5A, 30V DC contact rating, ideal for mapping devices, small audio equipment, and portable electronics. It offers robust mechanical durability of 100,000 cycles and electrical durability of 50,000 cycles, supporting reliable operation in various environments from -40°C to +85°C. The switch has precise operating force and release force specifications, with options for SPDT, SPST-NC, and SPST-NO configurations, ensuring versatile circuit control with excellent insulation resistance and dielectric strength.
MULTICOMP PRO MP000795 Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max.
- Insulation Resistance: 100MO min. at 500V DC
- Dielectric Strength: 250V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Circuit Configurations: SPDT, SPST-NC, SPST-NO
- Dimensions: Millimeters, various depending on model
Buy the Multicomp Series Microswitch: MP000795
Order the Multicomp MP000795 microswitch online today to ensure precision circuit control in your electronic projects. With a hinge lever design, 0.5A, 30V DC rating, and a lifespan of 100,000 mechanical cycles, this switch is suitable for mapping devices, portable electronics, and small audio equipment. Its robust construction supports operating temperatures from -40°C to +85°C, ensuring dependable performance. Fast, secure online purchase with excellent support guarantees quick integration into your electronic systems.
Buy Multicomp MP000795 microswitch now and experience unmatched reliability and performance in electronic control applications.
