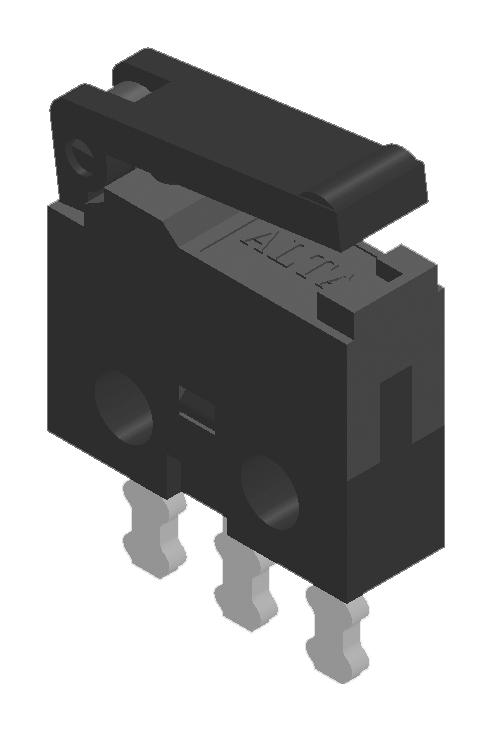

MULTICOMP PRO MP000797 Microswitch
This series of through-hole snap action microswitches are compliant with RoHS standards and feature PCB mounting, available in vertical and right-angle configurations. Suitable for mapping devices, small audio equipment, office automation equipment, and portable electronics, these microswitches offer reliable mechanical and electrical durability, with a contact rating of 0.5A at 30V DC. They feature quick response for high-frequency operation, with an operating temperature range of -40°C to +85°C. Designed for precision, they are essential components in various automation and control applications.
MULTICOMP PRO MP000797 Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles (60 operations/min)
- Electrical Durability: 50,000 cycles (20 operations/min)
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MΩ min. (at 500V DC)
- Dielectric Strength: 250V AC between terminals and ground for 1 minute
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max
- Release Force: 0.03N Min
- Over Travel: 0.3mm Min
- Movement Differential: 0.7mm Max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max
- Pretravel: 1.8mm Max
- Terminal Type: Uneven Pitch, Through Hole
Buy the Farnell Series Microswitch: MP000797
Purchase the Farnell series microswitch online now to ensure reliable switching performance in your automation projects. These high-quality, RoHS-compliant switches feature PCB mounting options, including vertical and right-angle configurations. Designed for durability, they withstand up to 100,000 mechanical cycles and operate efficiently in temperatures from -40°C to +85°C. Perfect for mapping devices, audio equipment, and portable electronics, these switches guarantee precise control, high responsiveness, and long service life, making them ideal for industrial and consumer applications.
Get Farnell MP000797 today—built for precision and long-lasting durability in various automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000797?
You can click on the BUY or RFQ button to purchase MP000797 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000797?
You can download the MP000797 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000797?
MULTICOMP PRO
