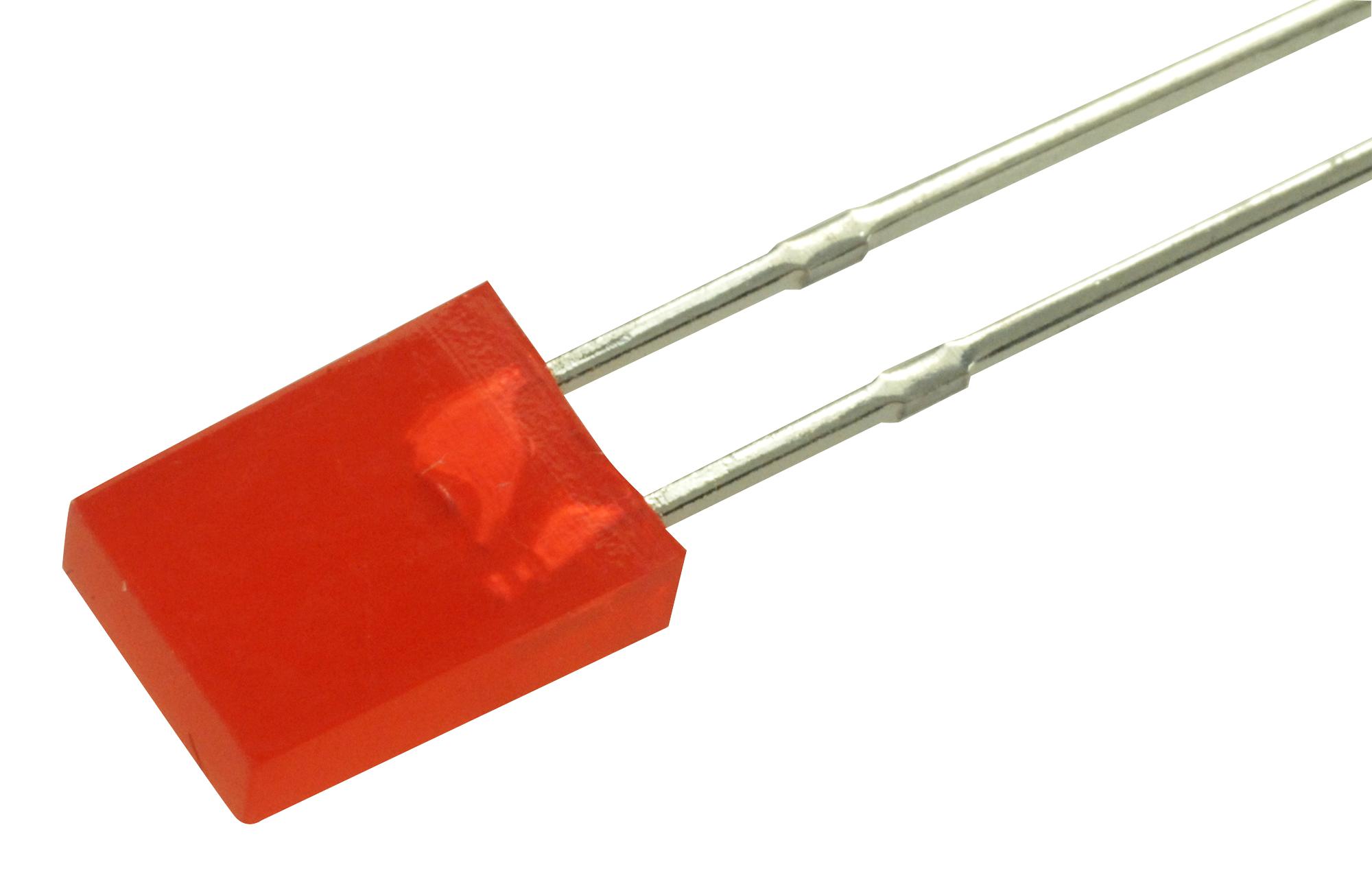

MULTICOMP PRO MCL453MD Rectangular Red LED
The Multicomp Pro MCL453MD is a high-quality 2mm by 5mm rectangular red LED designed for diverse electronic applications. It features a GaAsP on GaP dice material, emitting bright red light at a peak wavelength of 635nm with a viewing angle of 120°. This LED operates efficiently within a temperature range of -40°C to 85°C and has maximum ratings including 5V reverse voltage and 10μA reverse current. Its durable construction and excellent luminous intensity make it suitable for displays, indicator lights, and signaling devices, ensuring reliable performance in various environments.
MULTICOMP PRO MCL453MD Rectangular Red LED Specifications:
- Dice material: GaAsP on GaP
- Peak wavelength: 635 nm
- Viewing angle: 120 degrees
- Luminous intensity: 3.8 mcd (typical)
- Forward voltage: 2.6 V (max) at 20mA
- Reverse voltage: 5V
- Reverse current: 10 μA
- Operating temperature: -40°C to 85°C
- Storage temperature: -40°C to 100°C
- Soldering temperature: 260°C for 5 seconds
- Power dissipation: up to 85 mW
- Peak forward current: 100 mA (duty cycle 1/10 at 1kHz)
- Recommended forward current: 20 mA
- Dimensions: 2 mm x 5 mm
- RoHS compliant
Buy the Buy Multicomp Pro LED Part Number MCL453MD Online
Order the Multicomp Pro MCL453MD rectangular red LED online today and enjoy fast delivery, competitive pricing, and trusted quality. Perfect for indicators, displays, and signaling applications, this high-performance component offers bright illumination with a peak wavelength of 635nm and a wide viewing angle. Its durable construction ensures reliable operation across temperature ranges from -40°C to 85°C. Whether refurbishing existing designs or creating new electronic solutions, purchasing this LED online provides convenience and confidence in your project’s success.
Buy Multicomp Pro MCL453MD now and experience high reliability and bright red illumination for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL453MD?
You can click on the BUY or RFQ button to purchase MCL453MD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL453MD?
You can download the MCL453MD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL453MD?
MULTICOMP PRO
