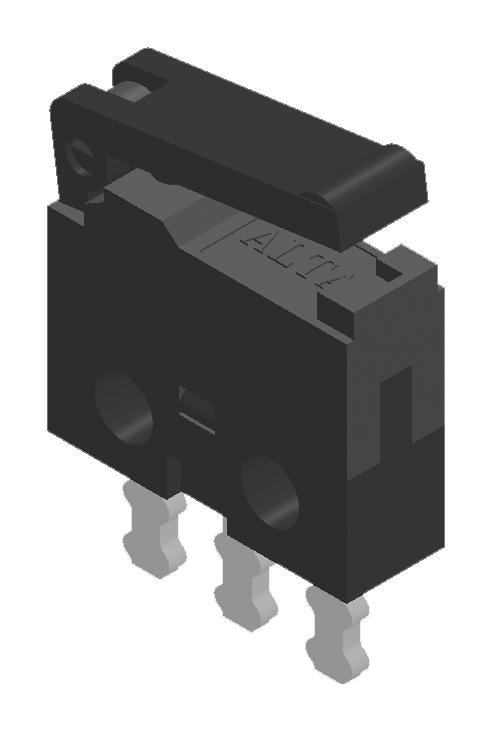

MULTICOMP PRO MP000804 Hinge Lever Microswitch
This through-hole snap action microswitch features a hinge lever design rated at 0.5A, 30V DC, with SPST-NO and SPST-NC configurations. Built for durability, it withstands up to 100,000 mechanical cycles and 50,000 electrical cycles, making it suitable for mapping devices, small audio gear, office equipment, and portable electronic applications. The switch operates reliably within a temperature range of -40°C to +85°C, with quick action response, operating force of 0.5N max, and a release force of 0.03N min, ensuring dependable performance in compact layouts.
MULTICOMP PRO MP000804 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MO min. at 500V DC
- Dielectric Strength: 250V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Dimensions: Approximate millimeter size 2.7mm to 3.1mm depending on part
Buy the Buy Premier Farnell Hinge Lever Microswitch Part Number MP000804 Online
Experience reliable switching performance with this precision hinge lever microswitch designed for small electronics, mapping devices, and portable equipment. Built for durability, it withstands up to 100,000 mechanical cycles and 50,000 electrical cycles. Operating within -40°C to +85°C, it features a compact design with an operating force of 0.5N and a quick response time. Ideal for applications demanding durability and consistent performance, this microswitch ensures dependable operation in tight spaces, enhancing product reliability and user satisfaction.
Get Premier Farnell MP000804 today—built for precision and long-lasting durability, perfect for compact electronic applications requiring reliable switching.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000804?
You can click on the BUY or RFQ button to purchase MP000804 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000804?
You can download the MP000804 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000804?
MULTICOMP PRO
