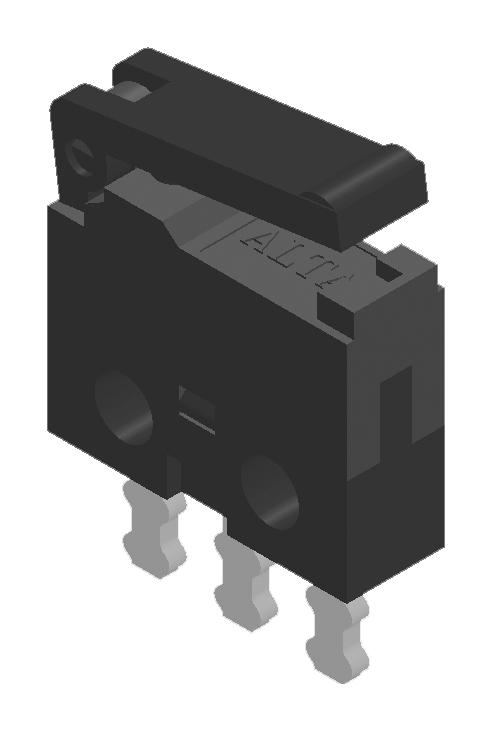

MULTICOMP PRO MP000806 Microswitch
This comprehensive through-hole snap action microswitch features a hinge lever design with a 0.5A, 30V DC contact rating, suitable for mapping devices, small audio, and portable electronics. It provides reliable mechanical and electrical durability with 100,000 and 50,000 cycles respectively, ensuring long service life. Operating forces are minimal, with a maximum of 0.5N and a release force of 0.03N, and it operates effectively within -40°C to +85°C temperature range. Various configurations include SPDT, SPST-NC, and SPST-NO, accommodating different circuit needs with easy mounting options.
MULTICOMP PRO MP000806 Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles at 60 operations/min
- Electrical Durability: 50,000 cycles at 20 operations/min
- Contact Resistance: > 100mΩ
- Insulation Resistance: 100MO minimum at 500V DC
- Dielectric Strength: 250V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: Maximum 0.5N
- Release Force: Minimum 0.03N
- Over Travel: Minimum 0.3mm
- Movement Differential: Maximum 0.7mm
- Operating Position: 6.7mm +0.5mm
- Free Position: Maximum 8mm
- Pretravel: Maximum 1.8mm
- Terminal Type: Uneven pitch
- Dimensions: Millimeters (varies by model)
Buy the Farnell Series Microswitch: MP000806
Purchase the Farnell Series Microswitch MP000806 online today to enhance your electronic assemblies with a durable, reliable switch designed for precise control and long-lasting performance. Compact and versatile, this hinge lever microswitch is ideal for mapping devices, portable electronics, and audio equipment. Its high contact rating, excellent electrical and mechanical durability, and wide operating temperature range make it an essential component for professional and DIY projects seeking dependable switching solutions. Get yours now for seamless integration and consistent operation.
Order your Farnell Series Microswitch MP000806 today and ensure reliable, high-quality switching performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000806?
You can click on the BUY or RFQ button to purchase MP000806 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000806?
You can download the MP000806 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000806?
MULTICOMP PRO
