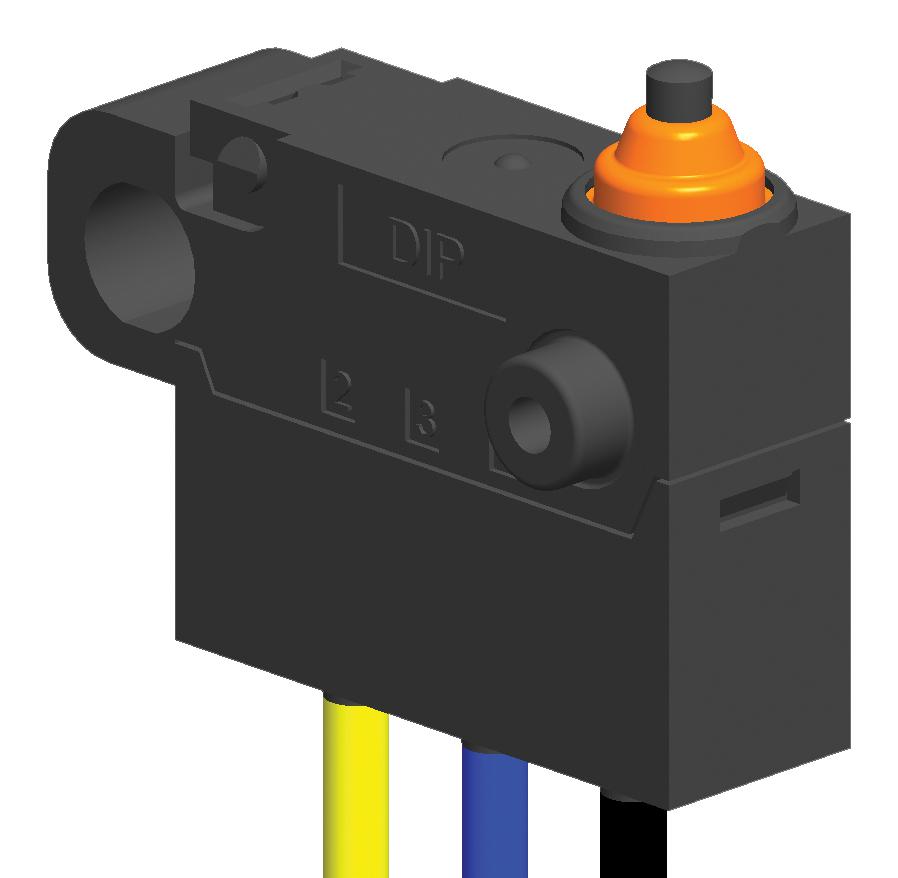

MULTICOMP PRO MP000808 Panel Mount Microswitch
The MP000808 is a high-performance panel mount snap action microswitch designed for industrial and electronic applications. Features include sealed IP67 protection, a connectorized lead, and reliable switching with a contact rating of 3A at 12V DC and 125V AC. Its robust construction ensures a minimum of 500,000 mechanical cycles and 100,000 electrical cycles, making it suitable for demanding environments. Operating temperature ranges from -40°C to +85°C. Compact dimensions of 14.7mm x 5.4mm x 12mm enable versatile installation in various control systems. Designed with RoHS compliance, it provides excellent insulation and durability, suitable for automotive and consumer electronics.
MULTICOMP PRO MP000808 Panel Mount Microswitch Specifications:
- Contact Rating: 3A at 12V DC, 125V AC; 0.1A at 48V DC, 125V AC, 250V AC
- Mechanical Durability: 500,000 cycles minimum
- Electrical Durability: 100,000 cycles minimum
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100,000Ω minimum
- Dielectric Strength: 600V AC between terminals of same polarity, 1500V AC between terminals and ground
- Temperature Range: -40°C to +85°C
- Dimensions: 14.7mm x 5.4mm x 12mm
- Operating Force: 1.3N max, 0.13N min
- Operating Position: 6.4mm to 6.95mm
- Over Travel: 0.8mm
- Contact Form: SPDT
- RoHS Compliant
Buy the Buy Multicomp Panel Mount Microswitch Part Number MP000808 Online
Enhance your electronic and industrial systems with the high-quality MP000808 panel mount microswitch. Featuring IP67 sealing, a 3A contact rating, a compact size of 14.7mm x 5.4mm x 12mm, and versatile operation from -40°C to +85°C, this switch ensures durability and dependable performance. Its connectorized lead simplifies installation, making it ideal for automotive, consumer electronics, and control applications. Trust this sealed microswitch for precise switching, long cycle life, and RoHS compliance, ensuring your projects meet rigorous standards for quality and sustainability.
Buy Multicomp MP000808 now and experience unmatched reliability and precision in your industrial and electronic controls.
