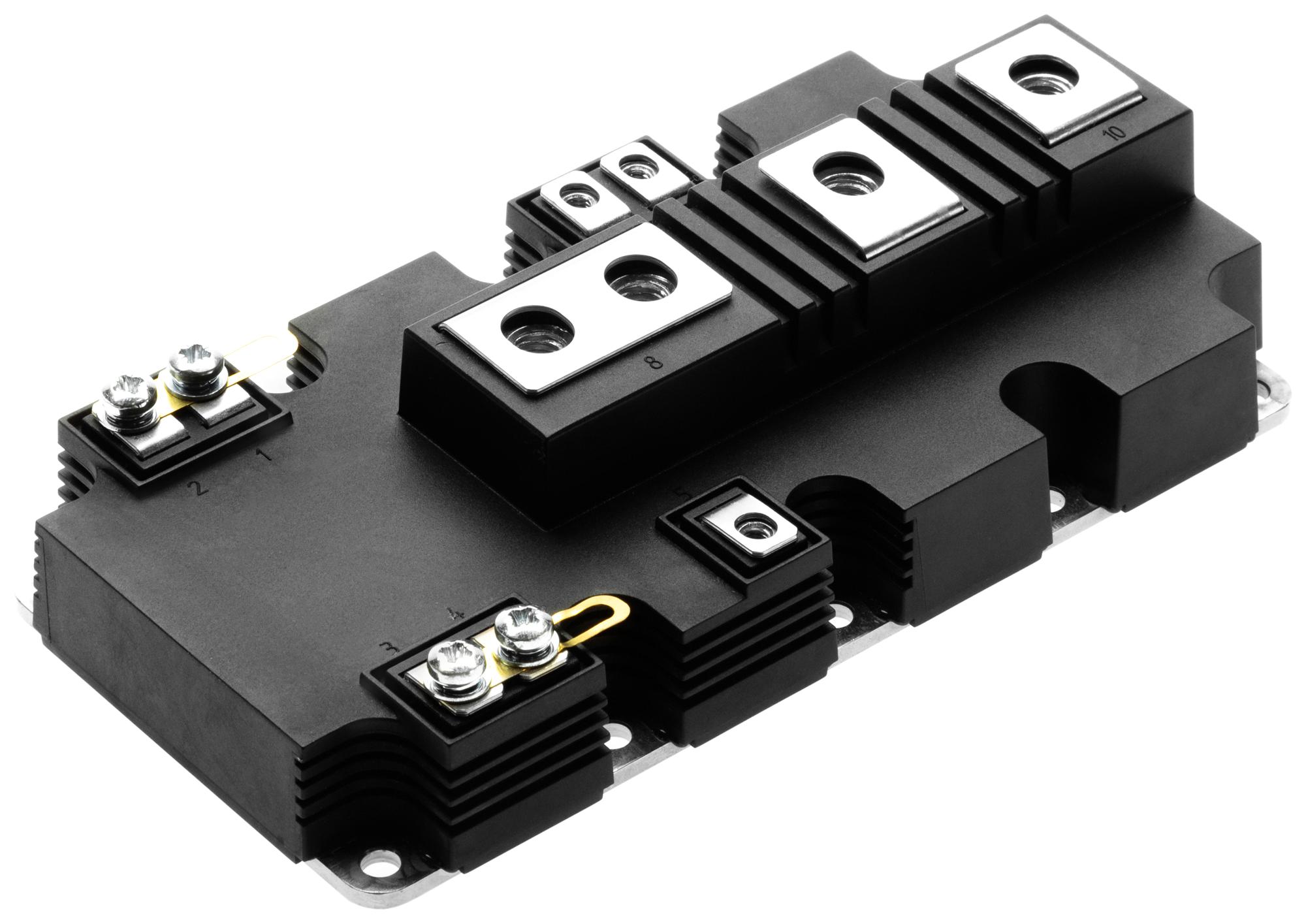

MULTICOMP PRO MPIM650H217TG5 Power IGBT Module
The half bridge IGBT module is designed for high power applications such as motor drives, high power converters, and renewable energy systems. It features trench gate, generation 5 TMOS IGBT technology with a Cu base and Al₂O₃ substrates, ensuring high thermal cycling capability and short circuit withstand. Rated at 1700V collector-emitter voltage and capable of handling currents up to 650A continuously and 1300A peak, this module offers high reliability with low inductance, electrically isolated base plate, and robust mechanical ratings for efficient heat dissipation and safety in demanding environments.
MULTICOMP PRO MPIM650H217TG5 Power IGBT Module Specifications:
- Collector-emitter voltage: 1700 V
- Continuous collector current: 650 A at 105°C
- Peak collector current: 1300 A at 1 ms
- Max power dissipation: 4.16 kW at 25°C
- Isolation voltage: 4000 V
- Thermal resistance (IGBT): 54 K/W
- Thermal resistance (diode junction to case): 19.5 K/W
- Thermal resistance (case to heatsink): 35 K/W
- Junction temperature range: -40°C to 150°C
- Gate threshold voltage: 5.2 - 5.8 V
- Gate-emitter voltage: +20 V
- Gate leakage current: 0.5 pA
- Diode forward current: 650 A, max 1300 A
- Diode forward voltage: 19 - 23 V at 650 A
- Module dimensions: Includes creepage distance of 33mm terminal to heatsink and terminal to terminal, with a weight of 900g
