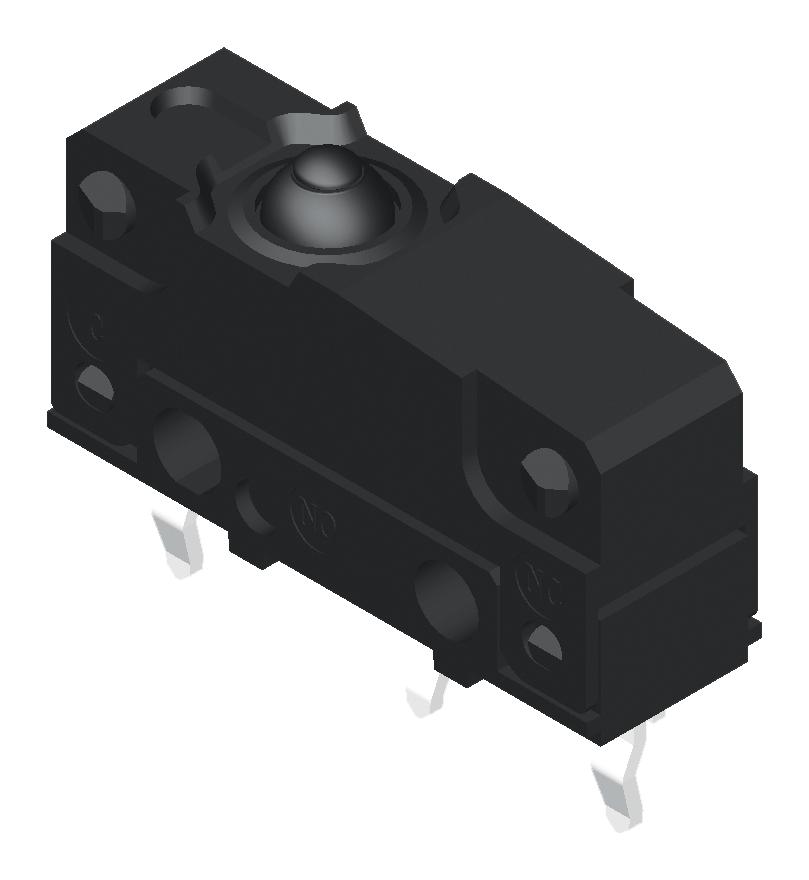

MULTICOMP PRO MP000809 Snap Action Microswitch
This product consists of sealed snap action microswitches designed for reliable operation in various applications, including kitchen appliances, vacuum cleaners, printers, and intelligent locks. Capable of handling 2A at 30V DC and 250V AC, these switches offer high durability with up to 1,000,000 mechanical cycles. Featuring IP67 sealing and PCB terminal options, they are suitable for low-voltage and low-current control systems, with operating temperatures ranging from -40°C to +85°C. They provide precise switching with a quick response, ensuring dependable performance in demanding environments.
MULTICOMP PRO MP000809 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 30V DC / 250V AC
- Mechanical Durability: 1,000,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 1,000V AC (terminals vs. ground), 1,500V AC (between terminals and non-current metal parts)
- Vibration Resistance: 10-55Hz, 1.5mm double amplitude
- Shock Resistance: 1,000 m/s² max.
- Operating Speed: 20-60 operations/min
- Operating Temperature: -40°C to +85°C
- Operating Force: 1.8N Max.
- Release Force: 0.2N Min.
- Over Travel: 0.4mm Min.
- Movement Differential: 0.15mm Max.
- Operating Position: 8.4mm +0.3mm
- Pretravel: 0.6mm Max.
- Sealing: IP67
- Terminal Types: Through hole, quick connect, solder
- Compliance: RoHS
Buy the Multicomp Series Microswitches: MP000809
Discover the high-reliability snap action microswitch rated 2A at 250V AC/DC, perfect for appliances, locks, and control systems. Featuring IP67 sealing for water and dust resistance, these switches support up to 1,000,000 mechanical cycles, ensuring long-lasting durability. Compact and easy to install with PCB, quick connect, or solder terminals, they operate efficiently across a temperature range of -40°C to +85°C. Ideal for industrial, consumer, and white goods applications, providing precise switching and dependable operation in demanding environments.
Order your multicomp series microswitch MP000809 today and ensure dependable, long-lasting performance for your electronic and control projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000809?
You can click on the BUY or RFQ button to purchase MP000809 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000809?
You can download the MP000809 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000809?
MULTICOMP PRO
