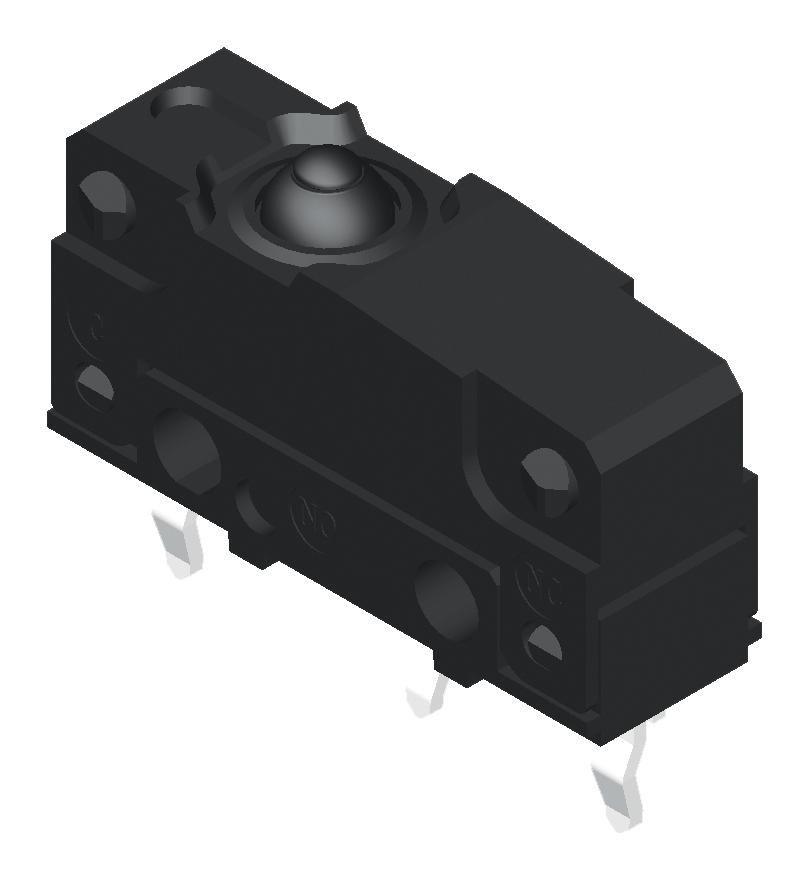

MULTICOMP PRO MP000810 Snap Action Microswitch
This snap action microswitch offers reliable operation with a long cycle life, suitable for home appliances and industrial applications. It features an IP67 sealing rating for durability in harsh environments, a contact rating of 2A at 30V DC/250V AC, and high electrical durability with 1,000,000 cycles. Its operating force is 1.8N max., with a release force of 0.2N min., and it can operate efficiently over a temperature range of -40°C to +85°C. Compact, easy to install, and RoHS compliant, it is ideal for appliances, vacuum cleaners, printers, and low-voltage controls.
MULTICOMP PRO MP000810 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 30V DC/250V AC
- Mechanical Durability: 1,000,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 100MQ min. (at 500V DC)
- Dielectric Strength: 1,000V AC between terminals; 1,500V AC between current-carrying parts and ground
- Vibration Resistance: Malfunction at 10-55 Hz, 1.5mm double amplitude
- Shock Resistance: Up to 1,000m/s²
- Operating Speed: 20 operations/min
- Operating Temperature: -40°C to +85°C
- Operating Force: 1.8N max.
- Release Force: 0.2N min.
- Over Travel: 0.4mm min.
- Movement Differential: 0.15mm max.
- Operating Position: 8.4mm +0.3mm
- Pretravel: 0.6mm max.
- Sealed IP67, RoHS compliant
Buy the Multicomp MP000810 – Reliable Snap Action Switch for Industrial Applications
Order the Multicomp MP000810 snap action microswitch today for dependable performance in your home or industrial equipment. Its sealed IP67 design ensures durability in challenging environments, making it ideal for appliances like vacuum cleaners, printers, and low-voltage applications. With a contact rating of 2A at 250V AC and 30V DC, and a cycle life of 1,000,000, this switch delivers long-lasting, precise operation. Easy to install with PCB terminals and RoHS compliance, it’s perfect for ensuring safety and reliability in your projects.
Buy Multicomp MP000810 now and experience unmatched reliability and performance in industrial and appliance control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000810?
You can click on the BUY or RFQ button to purchase MP000810 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000810?
You can download the MP000810 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000810?
MULTICOMP PRO
