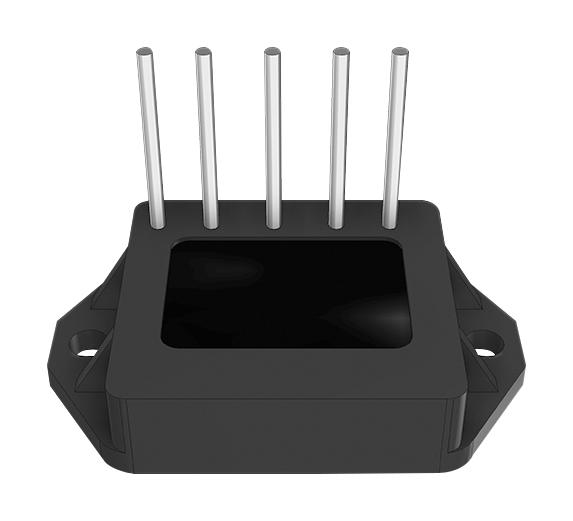

MULTICOMP PRO SMT3512GW Three Phase Bridge Rectifier
The SMT3512GW is a high-reliability, glass-passivated three-phase bridge rectifier designed for industrial power conversion. It features low forward voltage drop, high surge current capability, and excellent thermal performance. Suitable for printed circuit boards and capable of handling up to 1200V with a maximum average forward current of 35A. The device is mounted on heatsinks with silicone thermal compound, ensuring optimal heat transfer. It meets industry standards for electrical characteristics and temperature ranges, making it ideal for resistive, inductive, and capacitive loads in industrial applications.
MULTICOMP PRO SMT3512GW Three Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1200V
- Working Peak Reverse Voltage VRWM: 1200V
- DC Blocking Voltage VR: 1200V
- Peak Non-Repetitive Reverse Voltage VRsM: 1300V
- RMS Reverse Voltage VR(RMS): 840V
- Maximum Average Forward Rectified Current: 35A
- Peak Forward Surge Current t=8.3ms at 60Hz: 360A
- Maximum Forward Voltage Drop per element Vr: 44V at 17.5A Peak
- Reverse Peak Current IR: 5pA at VR=Vrrm@Ts=25°C
- RMS Isolation Voltage from case to lead: 2500V
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Mounting: Bolt down on heatsink with thermal compound, torque 2N.m
- Weight: 21 grams (approx.)
- Case: Epoxy with heat sink mount
- Terminals: Plated leads, solderable per MIL-STD-202, Method 208
Buy the Multicomp 1200V – Reliable Bridge Rectifier for Industrial Applications
Purchase the Multicomp 1200V three-phase bridge rectifier today for robust industrial power conversion. Designed for high surge currents and reliable operation, it ensures optimal performance in resistive, inductive, and capacitive loads. Flexible mounting on heatsinks with thermal compound improves heat dissipation, extending device life. Rated up to 1200V and 35A, it features low forward voltage drop, high reliability, and is suitable for printed circuit boards. Perfect for demanding industrial environments requiring durable and efficient power rectification solutions.
Buy Multicomp 1200V three-phase bridge rectifier now and experience unmatched reliability, high surge capability, and efficiency for industrial power solutions.
