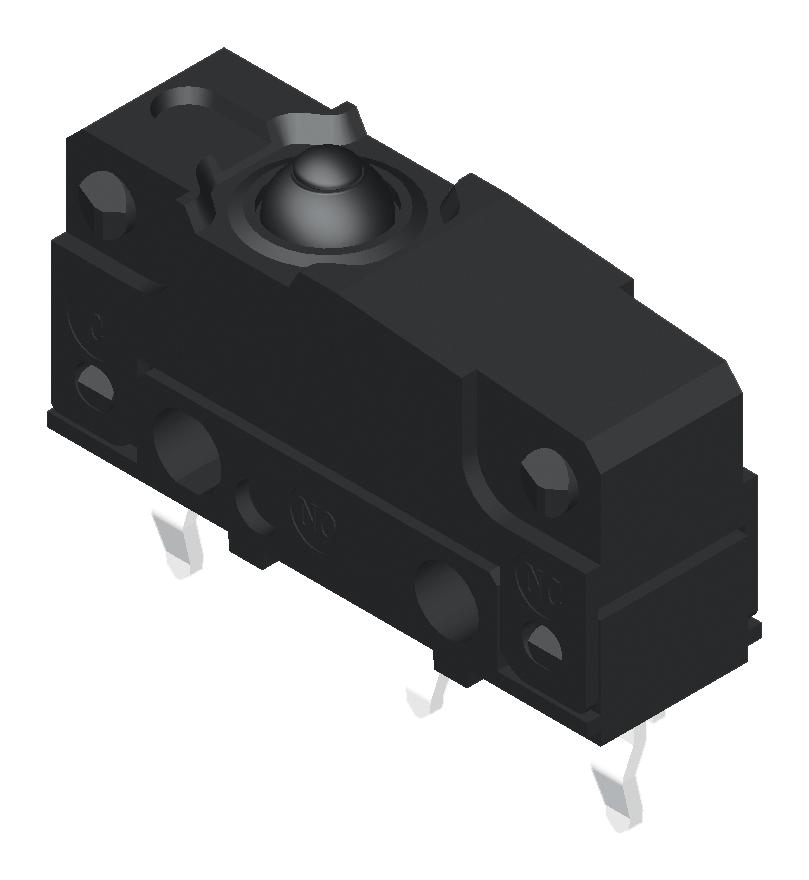

MULTICOMP PRO MP000811 Snap Action Microswitch
This high-reliability snap action microswitch features a compact design with a 2A current rating at 250V AC, perfect for automation, appliances, and control systems. It offers a long operation life, Sealed IP67 protection, and options for PCB or quick connect terminals. With precise operating and release forces, over travel of 0.4mm, and an operating temperature range of -40°C to +85°C, it ensures stable performance in harsh environments. Suitable for kitchen appliances, vacuum cleaners, printers, white goods, and low-voltage locking systems.
MULTICOMP PRO MP000811 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 30V DC/ 250V AC
- Mechanical Durability: 1,000,000 cycles (60 operations/min)
- Electrical Durability: 50,000 cycles (20 operations/min)
- Contact Resistance: 50mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 1,000V AC between terminals, 1,500V AC to ground
- Vibration Resistance: 10 ~ 55Hz, 1.5mm double amplitude
- Shock Resistance: Destruction at 1,000m/s² max., malfunction at 300m/s² max.
- Operating Speed: 20.1 ~ 500mm/sec
- Operating Temperature: -40°C to +85°C
- Operating Force: 1.8N Max.
- Release Force: 0.2N Min.
- Over Travel: 0.4mm Min.
- Movement Differential: 0.15mm Max.
- Operating Position: 8.4mm ±0.3mm
- Pretravel: 0.6mm Max.
- Sealed IP67
- Terminal Options: PCB or Quick Connect
- Ingress Protection: IP67 compliant
- Standards: UL, RoHS
Buy the Buy multicomp Snap Action Microswitch Part Number MP000811 Online
Secure your automation and control projects by purchasing the high-quality multicomp Snap Action Microswitch MP000811 online. Designed for durability and reliable performance, it features a sealed IP67 design, 2A current rating at 250V AC, and options for PCB or quick connect terminals. Its precise operating forces, long cycle life, and wide temperature range ensure dependable operation in various environments, including kitchen appliances, vacuum cleaners, and white goods. Buy online today for fast delivery and trusted quality.
Buy multicomp MP000811 now and experience unmatched reliability and precise switching for appliances and control systems.
