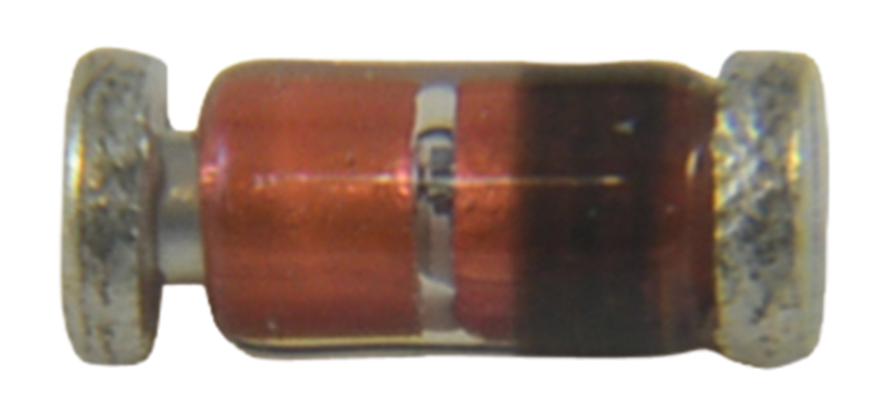

MULTICOMP PRO LL41487 Small Signal Switching Diode
The LL4148-13 is a compact small signal switching diode in a glass package, featuring a cathode indicator, 100V peak reverse voltage, 500mW power rating at 25°C, and a 4pF junction capacitance. Designed for high-speed switching in electronic circuits, it can handle up to 150mA of average forward current and has a forward voltage below 1V at 10mA. Its low leakage current and fast reverse recovery time of 4ns make it suitable for rapid switching applications, ensuring efficient performance across various electronic devices and systems.
MULTICOMP PRO LL41487 Small Signal Switching Diode Specifications:
- Case: MINI-MELF glass package
- Polarity: Cathode identified by a color band
- Peak reverse voltage: 100V
- Maximum forward current: 150mA
- Power dissipation: 500mW at 25°C
- Junction capacitance: 4pF
- Forward voltage: less than 1V at 10mA
- Leakage current: 25nA at Vr=20V
- Reverse recovery time: 4ns
- Operating temperature range: -55°C to 175°C
- Thermal resistance junction to ambient: 350K/W
Buy the Multicomp LL4148-13 – Reliable Switching Diode for Industrial Applications
Purchase the Small Signal Switching Diode today to ensure fast, reliable switching in your electronic projects. With a peak reverse voltage of 100V, power rating of 500mW, ultra-fast reverse recovery time, and low leakage current, this diode is ideal for high-speed digital and analog applications. Its miniature glass case and clear polarity marking make it easy to install and identify. Whether for circuit protection or switching tasks, buy online now for quick delivery and trusted quality.
Buy Multicomp LL4148-13 now and experience unmatched reliability and performance in high-speed switching circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO LL41487?
You can click on the BUY or RFQ button to purchase LL41487 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part LL41487?
You can download the LL41487 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of LL41487?
MULTICOMP PRO
