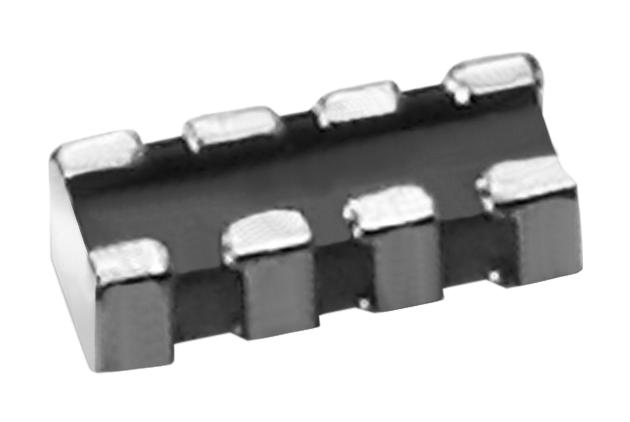

MULTICOMP PRO MP000956 Thick Film Resistor Array
This product is a chip resistor array designed for applications requiring precise resistance control and high reliability. It features thick film technology on alumina substrates, suitable for IR reflow soldering, offering a range of resistance values with tight tolerance and temperature coefficient, making it ideal for electronic and communication devices. Its compact size, high-quality construction, and RoHS compliance ensure optimal performance in power, measurement, and entertainment equipment with reduced assembly costs and matching with placement machines.
MULTICOMP PRO MP000956 Thick Film Resistor Array Specifications:
- Type: Chip Resistor Array, Thick Film, Isolated
- Material: Alumina Substrate with External Electrode
- Resistance Range: 150 to 560KΩ depending on model
- Resistance Tolerance: Varied (+1%, +5%)
- Temperature Coefficient: +200ppm/°C
- Power Rating at 70°C: 1/10W to 1/32W depending on model
- Maximum Operating Voltage: 25V to 50V, depending on model
- Maximum Operating Temperature: -55°C to +155°C
- Soldering Conditions: IR reflow at 260°C for 10s, wave soldering at 260°C for 10s
- RoHS Compliance: Yes
- Dimensions: Vary by model, e.g., MP-21: 0.84x0.62mm, MP-41: 1.4x0.6mm, MP-42: 2.4x1mm, MP-43: 3.2x1.6mm
- Environmental: Endurance over 1000 hours at operating temperature, humidity resistance, and thermal cycling durability
- Packaging: Reels with quantities ranging from 5K to 20K for tape-and-reel packaging
- Application: Suitable for power, measurement, communication, entertainment, and industrial electronics
- Features: Compact size, light weight, suitable for IR reflow, matching with placement machines, reliable, high quality, RoHS compliant
Buy the Buy multicomp Thick Film Array Chip Resistors Part Number MP000956 Online
Enhance your electronic projects with high-quality multicomp thick film resistor arrays. Designed for precision, reliability, and compatibility with IR reflow soldering, these arrays offer resistance values from 150Ω to 560KΩ with tight tolerances. Their robust construction and RoHS compliance ensure durability in power, measurement, and communication equipment. Purchase online today to benefit from fast delivery, competitive pricing, and the confidence of sourcing from a trusted supplier—perfect for industrial, commercial, and DIY electronics applications.
Buy multicomp MP000956 now and experience unmatched reliability and high-performance electronic components for your assembly needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000956?
You can click on the BUY or RFQ button to purchase MP000956 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000956?
You can download the MP000956 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000956?
MULTICOMP PRO
