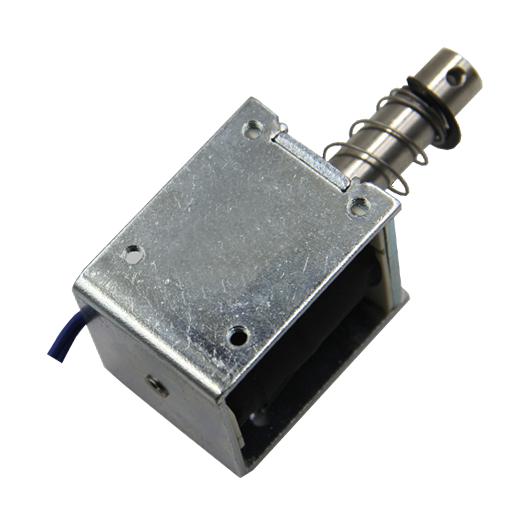

MULTICOMP PRO MP001148 Box Frame Solenoid
The Box Frame Solenoid operates on 12V DC with an 8W power rating, providing a 15mm stroke force of 2100g at a continuous work cycle and a 100gf holding strength for 30 seconds. Designed for industrial and automation applications, this solenoid features high insulation resistance (500V DC, 50MQ) and dielectric strength (700V DC, 50/60Hz). It withstands temperatures from -20°C to +65°C and humidity levels up to 95% RH. Durability is rated for over 25 million cycles, ensuring long-lasting performance in demanding environments.
MULTICOMP PRO MP001148 Box Frame Solenoid Specifications:
- Operating Temperature: -20°C to +65°C
- Operating Humidity: 5% to 95% RH
- Store Temperature: -20°C to +45°C
- Store Humidity: 5% to 60% RH
- Voltage: 12V DC
- Wattage: 8W
- Insulation Resistance: 500V DC, 50MQ
- Dielectric Strength: 700V DC, 50/60Hz
- Insulation Class: B (130°C)
- Stroke-Force: 15mm pull, 2100g
- Hold Force: 100gf for 30 seconds
- Cycle Life: Over 25 million cycles
- Response Time: 250ms at 15mm stroke
- Operating Power: 8W
- Temperature Rise: 100°C at pass conditions
- Dimension: Approximate size 20x20x30mm (see diagram)
Buy the Buy Multicomp Box Frame Solenoid Part Number MP001148 Online
Purchase the reliable 12V DC Box Frame Solenoid MP001148 online for your automation needs. With an 8W power rating, 15mm stroke, and high cycle durability exceeding 25 million cycles, this solenoid is designed for demanding industrial environments. It offers excellent insulation resistance and dielectric strength, ensuring safety and performance. Compact and efficient, it operates within -20°C to +65°C temperatures and withstands humidity levels up to 95%. Ideal for automation, manufacturing, and control systems, ensuring seamless operation and long-term reliability.
Get Multicomp MP001148 today—built for long-lasting durability and reliable operation in industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001148?
You can click on the BUY or RFQ button to purchase MP001148 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001148?
You can download the MP001148 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001148?
MULTICOMP PRO
