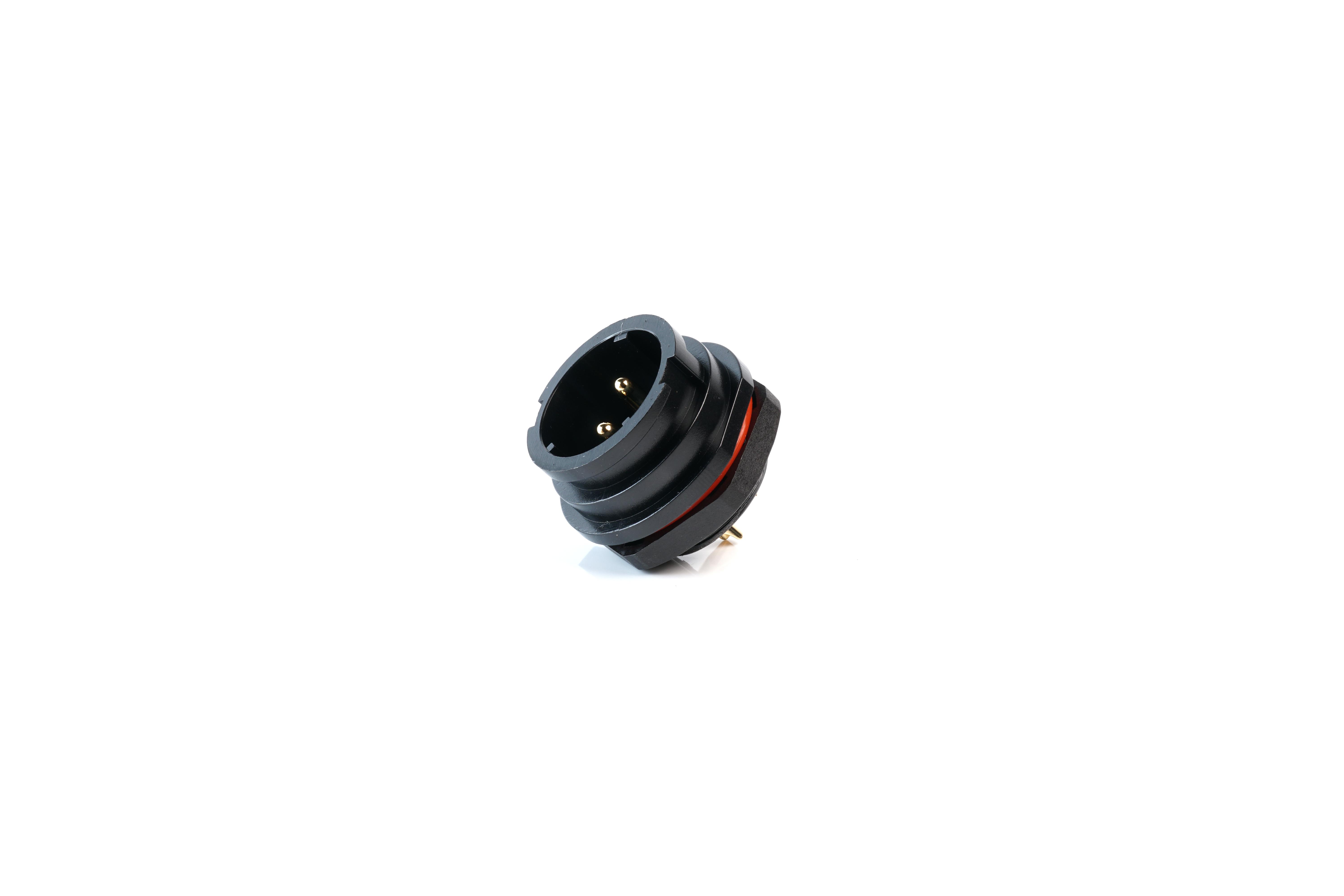

MULTICOMP PRO MP002709 Industrial Circular Connector
The MP-T21 IP67 series offers a durable range of connectors with bayonet couplings for quick and secure connection and disconnection. These connectors are available in panel mount, cable mount, and in-line configurations, supporting cable-to-panel or cable-to-cable connections. Designed to meet IP67 weatherproof standards, they are suitable for both indoor and outdoor use. Features include a 21mm cut-out fit, solder and screw termination options, and various pole configurations with 2, 3, 4, 5, 7, 9, and 12 pole versions. An IP67 cap is also available for additional sealing. These connectors are ideal for applications in automation and process control, medical devices, security systems, test and measurement equipment, and industrial automation.
MULTICOMP PRO MP002709 Industrial Circular Connector Specifications:
- Material and Specifications: Shell Material Nylon66, PC panel and insert housing shells, fire-resistant V-0, insert material PPS max 260°C, contact material brass with gold plating, termination options solder and screw, IP67 rating, 500 mating cycles, operating temperature -40°C to +80°C, insulation resistance 2000 MΩ, contact configurations 2, 3, 4, 5, 7, 9, 12 poles, rated current up to 30A, rated voltage up to 500V, test voltage 1500V (1 min), contact resistance 1-5 mΩ, wire size for solder: 0.75/18 mm²/AWG, for screw: 1.5/15 mm²/AWG, RoHS compliant, IP67 waterproof.
Buy the Buy multicomp Series MP002709 IP67 Connectors Online
Enhance your projects with the reliable multicomp Series MP002709 IP67 circular connector, offering IP67 rated waterproof protection, quick bayonet coupling, and versatile configurations. Suitable for automation, medical, and industrial environments, these connectors feature durable nylon66 shells, gold-plated brass contacts, and options for solder or screw termination. Support multiple pole counts from 2 to 12, with operating temperatures from -40°C to +80°C. Ensure secure, weatherproof connections in indoor and outdoor applications by ordering online today for fast delivery and superior performance.
Order your multicomp Series MP002709 IP67 connector today and ensure reliable, weatherproof connections for industrial and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002709?
You can click on the BUY or RFQ button to purchase MP002709 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002709?
You can download the MP002709 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002709?
MULTICOMP PRO
