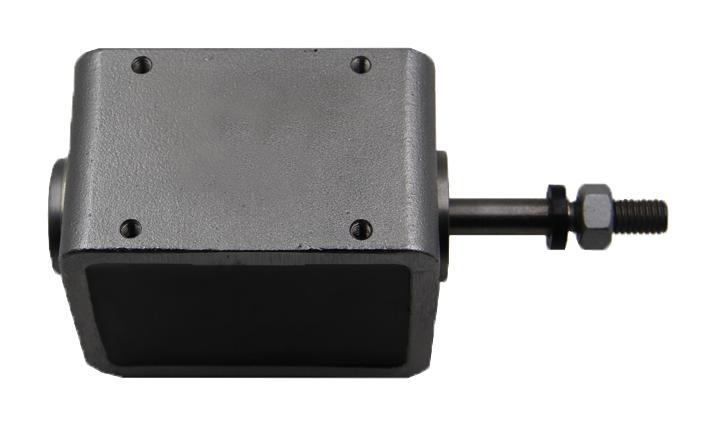

MULTICOMP-PRO MP001153 Box Frame Solenoid
This box frame solenoid operates at 24V DC with a power consumption of 20.6W and provides a thrust of 2kgf over a 10mm stroke. Designed for continuous operation with a life cycle of 2.5 million cycles, it features an insulation resistance of 250MQ and dielectric strength of 700V AC. It has an IP54 protection rating, can operate within -20°C to +45°C, and withstands humidity between 5% to 95%. The solenoid's robust construction ensures reliable performance in industrial automation applications requiring precise control of linear motion.
MULTICOMP-PRO MP001153 Box Frame Solenoid Specifications:
- Operating Temperature / Humidity: -20°C to +45°C / 5% to 95% RH
- Store Temperature / Humidity: -20°C to +65°C / 5% to 60% RH
- Operating Voltage: 24V DC ±10%
- Insulation Resistance: 500V DC, 250MQ
- Dielectric Strength: 700V AC 50/60Hz
- Insulation Level: Class B (130°C)
- Wattage: 20.6W (24V DC, R=280+10%)
- Stroke-Force: 10mm thrust: 22000gf, 25mm thrust: >1500gf (24V DC)
- Work Cycle: Continuous operation, ED 100%
- Temperature Rise: Up to 80°C (24V DC, 0.5 sec, no load)
- Response Time: 250ms (24V DC, S=25mm, no load)
- Leading Strength: 1Kgf for 30 seconds
- Life Span: 2,500,000 cycles
- Degree of Protection: IP54
Buy the Multicomp Series Box Frame Solenoid: MP001153
Order the reliable 24V DC box frame solenoid MP001153 online for your automation projects. This durable component offers 10mm stroke, 2kgf thrust, IP54 protection, and a long lifecycle of 2.5 million cycles, ensuring efficient and consistent operation in demanding industrial environments. Its compact design and high power efficiency make it ideal for controlling linear movements in machinery, automation systems, and manufacturing equipment. Purchase today for fast delivery and consistent performance in your critical applications.
Get Multicomp MP001153 today—designed for continuous operation and precise linear control in industrial automation.
