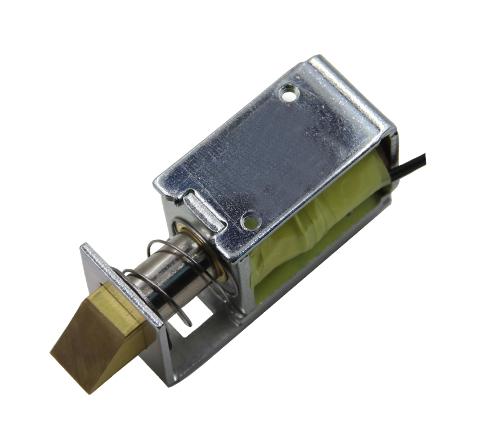

MULTICOMP-PRO MP001162 Solenoid Lock
This 12V DC solenoid lock is designed for secure, reliable locking applications in access control systems. Operating within -20°C to +45°C and humidity levels of 5% to 95%, it features a 6mm stroke force Thrust of over 50gf, with a response time of 250ms. The lock consumes 9W power, with an insulation resistance of 250MQ at 500V DC, and a dielectric strength of 700V AC. Its compact dimensions and high durability make it ideal for industrial and security use, supporting up to 2,500,000 cycles for long-term operation.
MULTICOMP-PRO MP001162 Solenoid Lock Specifications:
- Operating Temperature / Humidity: -20°C to +45°C / 5% to 95% RH
- Store Temperature / Humidity: 1-20°C to +65°C / 5% to 60% RH
- Operating Voltage: 12V DC ±10%
- Insulation Resistance: 250MQ at 500V DC
- Dielectric Strength: 700V AC 50/60Hz
- Insulation Level: Class B (130°C)
- Wattage: 9W (12V DC, R=160 +10%)
- Stroke-Force: 6mm thrust, >50gf (12V DC)
- Work Cycle: Pass 0.05 sec, break 0.05 sec, max. power-on time 10 sec (ED 50%)
- Temperature Rise: Up to 80°C (12V DC, no load, 0.05 sec off)
- Response Time: 250ms (12V DC, no load, S=10.5mm)
- Leading Strength: 1Kgf-30 seconds
- Life: 2,500,000 cycles (pass/ break cycles at 12V DC)
Buy the Buy Multicomp Solenoid Lock Part Number MP001162 Online
Secure your access control systems with the reliable and durable solenoid lock. Operating at 12V DC with a 6mm thrust and high cycle durability, this lock ensures dependable security. Its optimized design supports up to 2,500,000 cycles, making it suitable for industrial and security applications. Easy to install and maintain, this solenoid lock delivers rapid response and consistent long-term performance in a compact form factor. Shop online today for trusted security solutions with excellent technical specifications and high reliability that meet your demanding needs.
Buy Multicomp MP001162 now and experience reliable locking performance with long cycle life for security applications.
