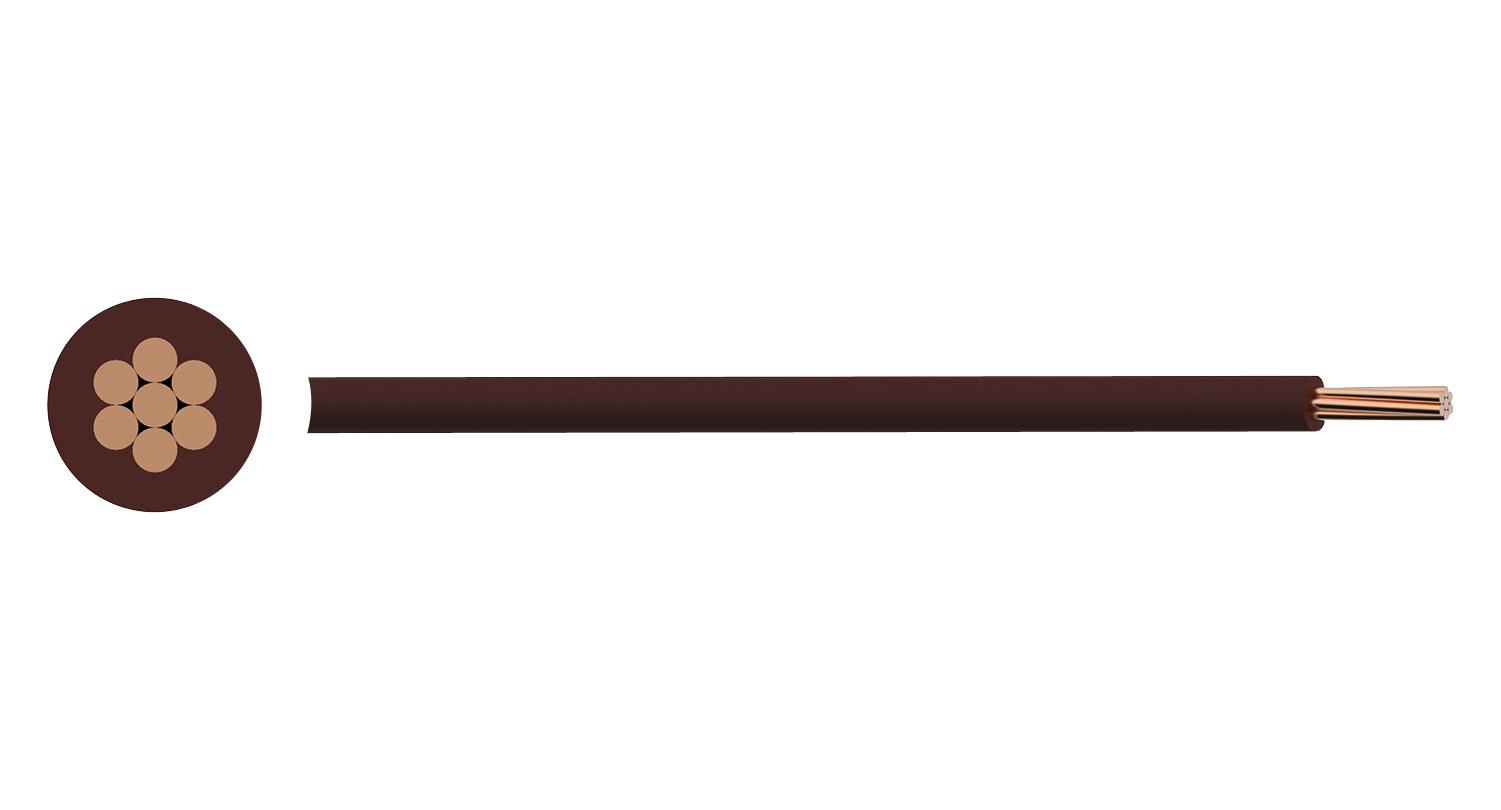

MULTICOMP PRO PP6491B150MMBRN Power Cable
Pro-POWER low smoke zero halogen (LSZH) cable designed for conduit and protected installations, preventing fire, smoke emission, and toxic fumes. Constructed with Class 2 stranded copper conductors and LSZH insulation, it complies with BS EN 50525-3-41 and BASEC standards. Rated for 450/750V and temperatures from 0°C to +90°C, this robust cable features color-coded insulation and white or black sheaths, suitable for safe, fire-resistant electrical wiring in commercial or industrial settings.
MULTICOMP PRO PP6491B150MMBRN Power Cable Specifications:
- Voltage Rating: 450/750V
- Conductor Material: Class 2 stranded copper
- Insulation: LSZH Type EI5 according to BS EN 50363
- Insulation Color: Blue, Brown, Green/Yellow, Grey, Black
- Sheath Color: White & Black
- Temperature Rating: 0°C to +90°C
- Bending Radius: Up to 10mmz?: 4 x overall diameter
- Nominal Cross-Sectional Areas: 1.5 mm², 2.5 mm²
- Nominal Diameter: 3.4 mm (for 1.5mm²), 4.1 mm (for 2.5mm²)
- Weight: 22 kg/km (1.5mm²), 35 kg/km (2.5mm²)
- Standards: BS EN 50525-3-41, BASEC approved
- Operating Temperature: Fixed: 0°C to +90°C
- Minimum Bending Radius: 4 x overall diameter
Buy the Pro-POWER Series Power Cable: PP6491B150MMBRN
Purchase the Pro-POWER Series Power Cable PP6491B150MMBRN online now for proven fire-resistant and low smoke performance, ideal for conduit and protected wiring. This durable, LSZH-insulated copper conductor cable adheres to high standards like BS EN 50525-3-41 and BASEC approval, rated for 450/750V and temperatures up to 90°C. Its color-coded insulations and robust sheath make it perfect for industrial, commercial, or critical electrical applications, providing safety, flexibility, and peace of mind for your wiring projects.
Order your Pro-POWER Series Power Cable PP6491B150MMBRN today and ensure fire-resistant, safe, and reliable electrical installations.
