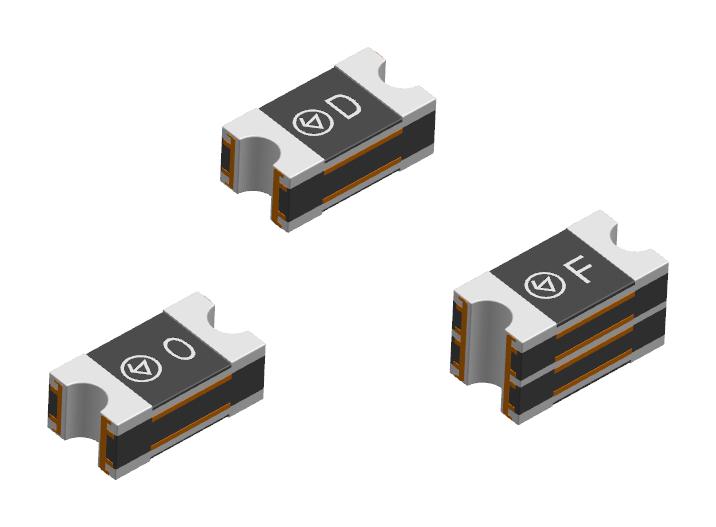

MULTICOMP PRO MP001598 Fast-Acting SMD Fuse
These ultra-compact 0603 size quick-acting surface-mount fuses are engineered for high-performance circuit protection in compact electronic devices. Made from ceramic and glass with RoHS compliance, they feature rapid current interruption, excellent environmental integrity, and a non-resettable design. Suitable for applications in mobile phones, digital cameras, hard drives, and other consumer electronics, they pass UL 248-14 standards, withstand vibration, temperature extremes from -55°C to +125°C, and are compatible with reflow and wave soldering, ensuring reliable, durable protection in demanding environments.
MULTICOMP PRO MP001598 Fast-Acting SMD Fuse Specifications:
- Operating Temperature: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Relative Humidity: 75% yearly average without dew, max 30 days at 95%
- Vibration Resistance: 24 cycles at 15 min, 10-60Hz at 0.75mm, 60-2000Hz at 10g
- Rated Current: 1A, 1.5A, 2A, 3A
- Rated Voltage: 32V DC
- Voltage Drop: 0.011-0.21mV
- Breaking Resistance: 35-230 mo
- DC Interrupting Rating: 50A at 32V DC
- Dimensions: 1.6mm x 0.9mm x 0.45mm
- RoHS compliant
- Ceramic and glass construction
- Lead-free and Halogen-free
- UL 248-14 compliant
Buy the Buy Multicomp Fast-Acting SMD Fuse Part Number MP001598 Online
Purchase the Multicomp fast-acting SMD fuse MP001598 online today and ensure durable, high-performance circuit protection for your electronic devices. These miniature 0603 size fuses feature ceramic and glass construction, with RoHS compliance, and are designed to withstand temperature extremes from -55°C to +125°C. Their rapid interruption of excessive current makes them ideal for mobile phones, digital cameras, hard drives, and consumer electronics. Compatible with reflow and wave soldering, they meet UL 248-14 standards and offer reliable environmental resistance for advanced electronic systems.
Get Multicomp MP001598 today—compact, reliable circuit protection designed for demanding electronic applications.
