MULTICOMP PRO MP001604 SMD Fuse
The Time-Lag SMD Fuses are compact and reliable circuit protection components designed for surface-mount technology. Utilizing ceramic and glass construction, these fuses feature rapid current interruption, making them ideal for protecting delicate electronic devices like cellphones, DVD players, and digital cameras. They are compatible with reflow and wave soldering, exhibit excellent environmental integrity, and are lead-free and halogen-free, meeting UL 248-14 standards. Operating between -55°C and +125°C, they ensure reliable performance with high current capacity and stable voltage ratings, suited for modern electronic applications.
MULTICOMP PRO MP001604 SMD Fuse Specifications:
- Operating Temperature: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Relative Humidity: 75% yearly average without dew, max 30 days at 95%
- Vibration Resistance: 24 cycles at 15 min each, 0.75mm amplitude (5–60Hz), 10g acceleration (60–2000Hz)
- Rated Current: 3A (MP001603), 5A (MP001604)
- Rated Voltage: 32V DC
- Voltage Drop: 110mV at 3A, 88mV at 5A
- Melting I²t: 50A²s at 3A, 50A²s at 5A
- Dimensions: 1.9mm x 1.1mm (millimetres)
- Soldering Profile: Peak at 260°C, preheat max 200°C, reflow time 5sec, wave soldering reservoir at 260°C
- Construction: Ceramic substrate with silver termination pad, glass cover
- Compliance: RoHS, UL 248-14, lead-free, halogen-free, environmentally resistant

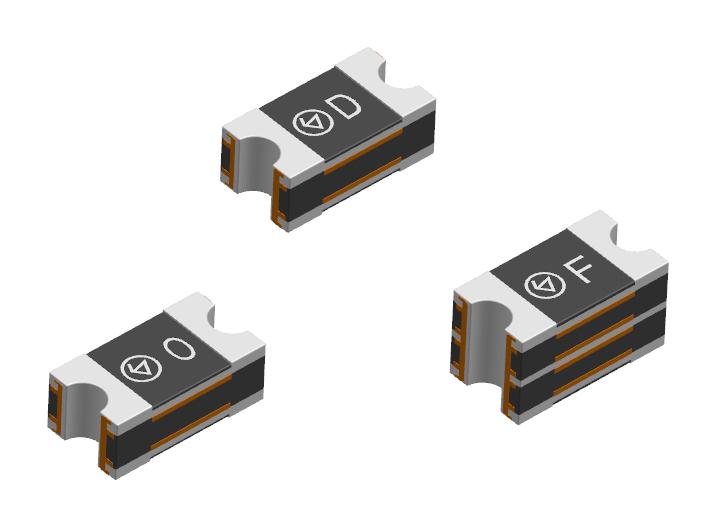

Buy the Buy Multicomp Time-Lag SMD Fuses Part Number MP001604 Online
Discover the reliability of Multicomp time-lag SMD fuses, ideal for protecting delicate electronics with rapid current interruption and ceramic-glass construction. Compact and designed for surface-mount applications, these fuses provide excellent environmental resistance and compliance with UL standards. Perfect for small electronic devices like cellphones, cameras, DVD players, and more, they ensure stable electrical performance from -55°C to +125°C. Easily soldered using reflow or wave techniques, they guarantee high-quality protection with minimal space requirements, making them essential components for modern electronic manufacturing.
Order your Multicomp Series MP001604 5A SMD fuse today and ensure reliable, fast-acting circuit protection for your electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001604?
You can click on the BUY or RFQ button to purchase MP001604 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001604?
You can download the MP001604 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001604?
MULTICOMP PRO
