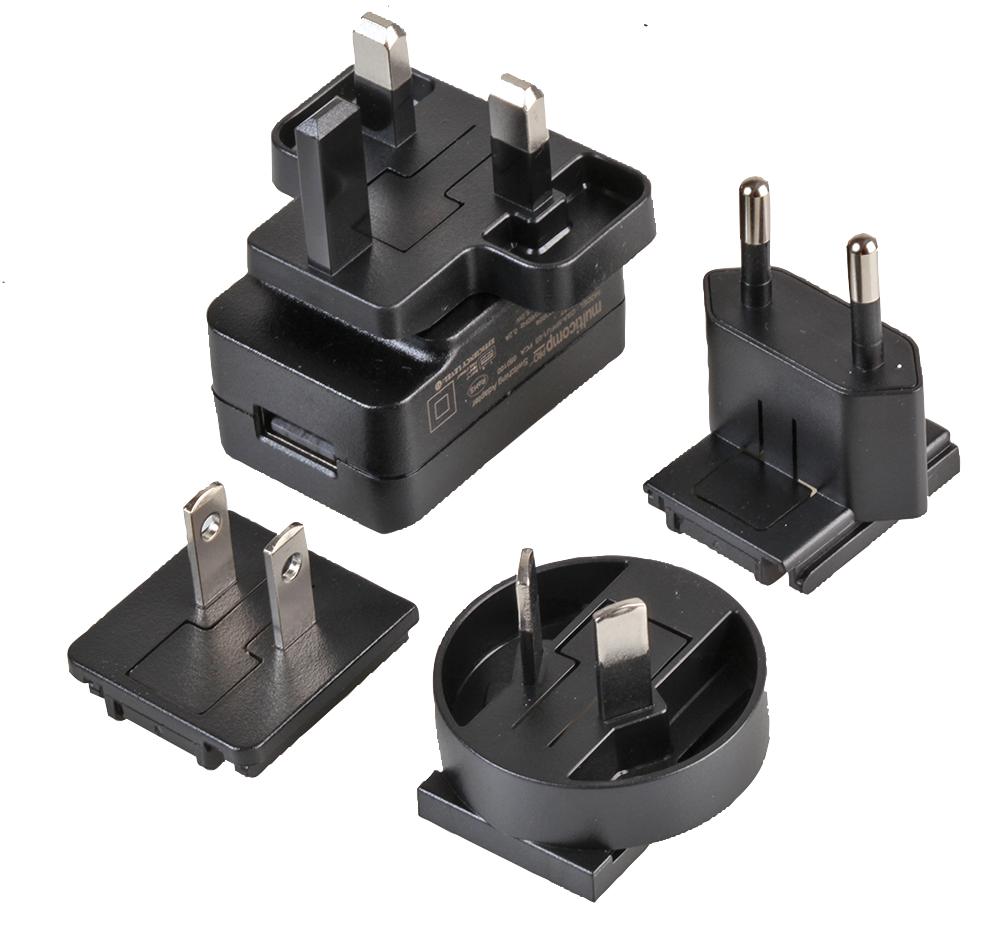

MULTICOMP PRO MP001977 USB Power Adapter
The 5W Interchangeable Wall Plug USB Adapter provides a reliable 5V DC output at 1A current, suitable for powering various electronic devices. Its compact design features interchangeable AC heads for worldwide compatibility, including UK, Euro, USA, and AU plugs. This adapter boasts Level VI efficiency, ensuring energy-saving operation with over-voltage, over-current, and short-circuit protections. Certified with TUV-GS and CE approvals, it operates within a temperature range of 0°C to +40°C and is ideal for international applications requiring a safe, efficient, and versatile power supply solution.
MULTICOMP PRO MP001977 USB Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.3A Max
- Output Voltage: +5V
- Output Current Range: 1A
- Output Connection: USB Outlet
- Total Output Regulation: +5%
- Line and Load Regulation: 45%
- Ripple & Noise: 300m Vp-p
- Efficiency: 73.77% Min
- Over Voltage Protection: 10V Max
- Over Current Protection: 1.5A Max with Auto-Recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Size: Max 47.3mm (L) x 34.8mm (W) x 26.7mm (H)
- Weight: 80g
- Safety Standard: Meets TUV-GS (EN60950-1), CE (EN55032)
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: 0.25mA Max
- MTBF: 50,000 Hours
Buy the Multicomp PRO MP001977 – Reliable USB Power Adapter for Industrial Applications
Secure your multicomp PRO MP001977 USB wall plug adapter online today and enjoy dependable 5V charging solutions. Designed with interchangeable heads for worldwide compatibility, it offers certified safety, high efficiency, and protective features like short-circuit and over-current protections. Its compact size makes it ideal for industrial and consumer applications, ensuring reliable performance in various environments. Purchase now for top-tier quality and energy-efficient operation, perfect for powering a range of electronic devices globally.
Order your multicomp PRO Series MP001977 5W USB wall plug adapter today and ensure reliable, worldwide device charging with safety and efficiency.
